ROADWAY & AREA LUMINAIRE
Engineered for High-Performance Roadways
Designed for major roadways, arterial streets, highways and large commercial developments where maximum light output, optical precision and long-term reliability are essential.
View product details, optical assembly, housing design, mounting interface and available configurations.
VECTOR XL is developed for high-output lighting installations requiring extended spacing, excellent roadway uniformity and dependable performance in demanding municipal and infrastructure projects.

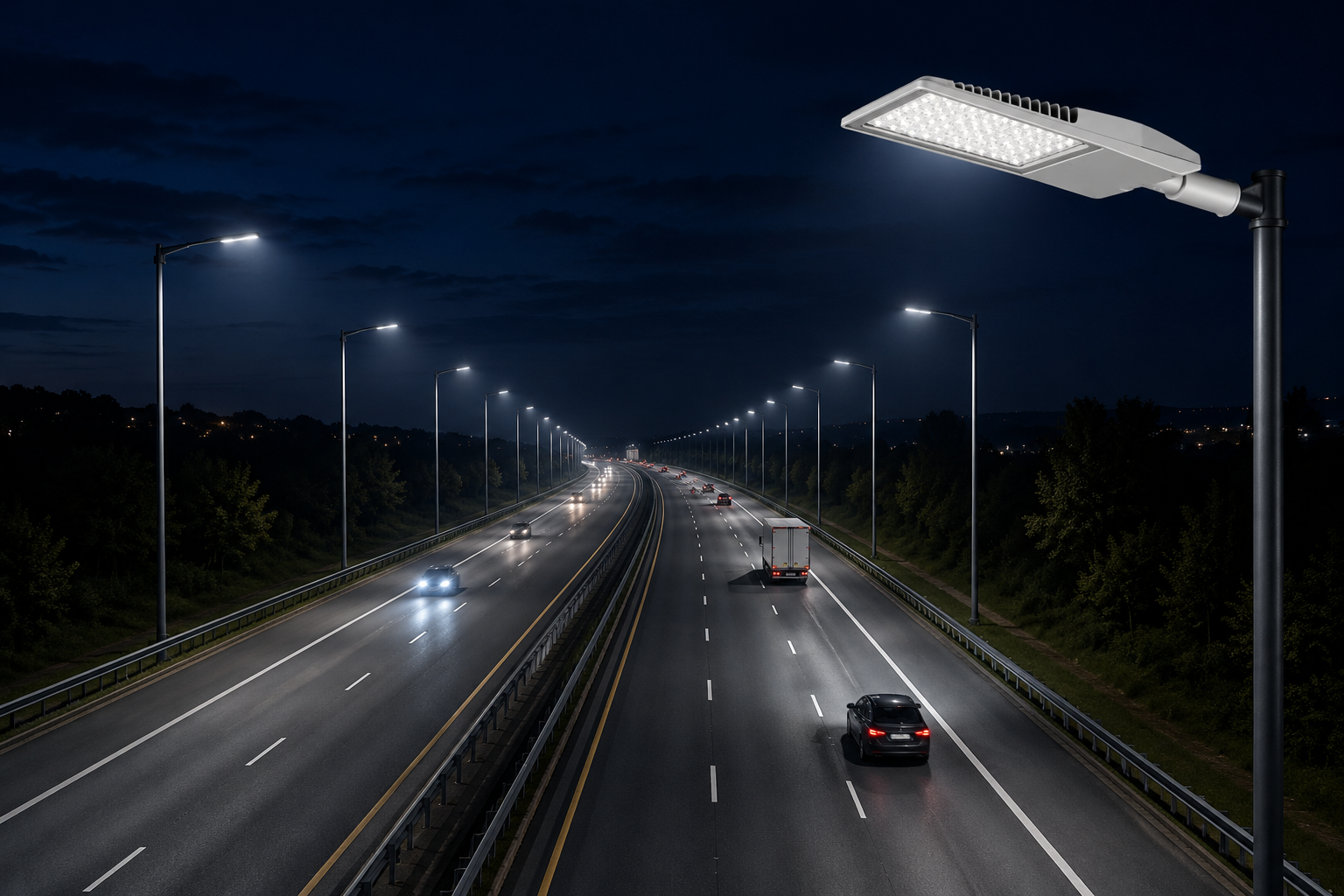

Designed for highways and expressways, delivering high-output illumination, long spacing capability and excellent roadway uniformity for high-speed traffic.

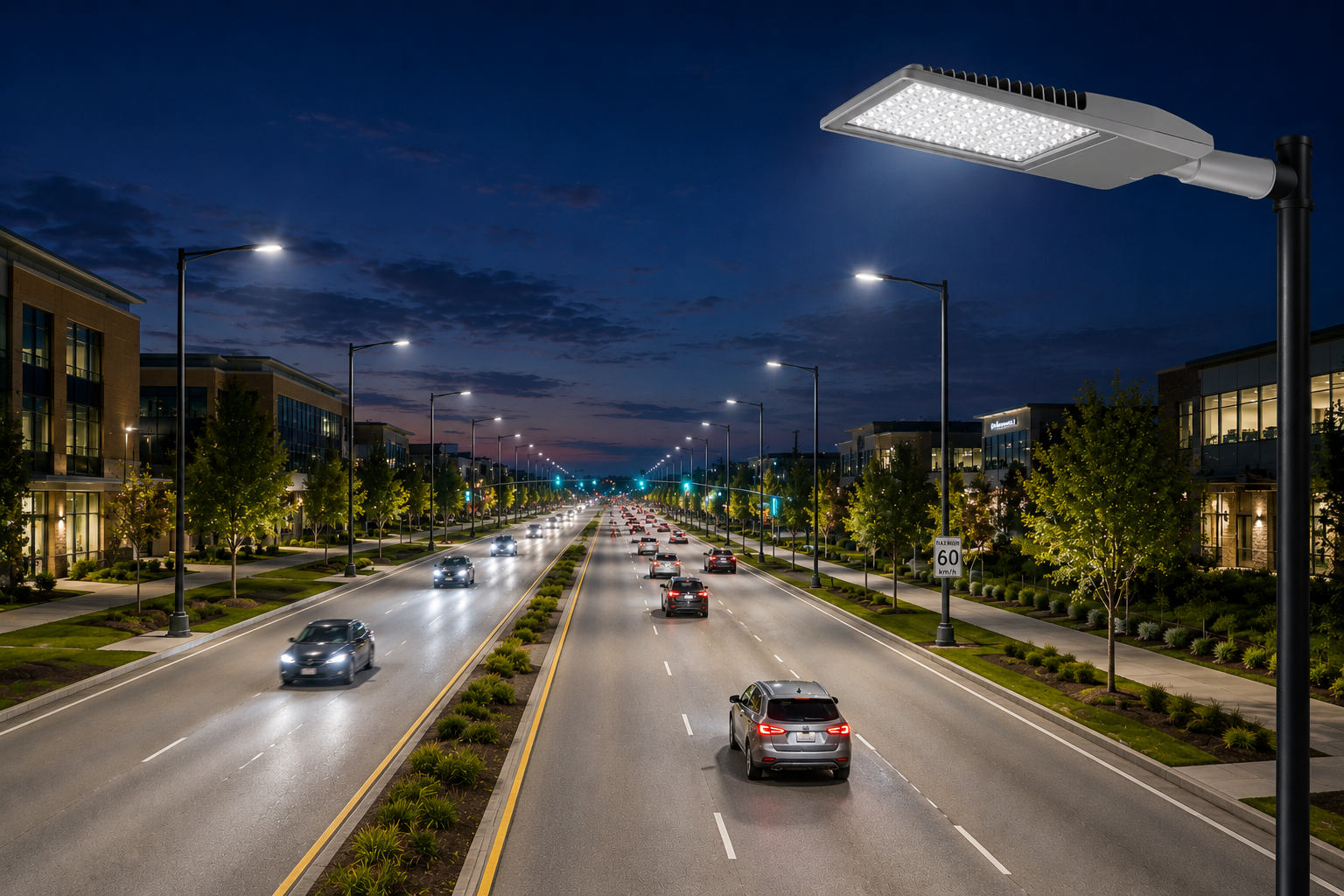

Optimized for major arterial corridors where high lumen output, precise optics and reliable visibility support continuous traffic flow.

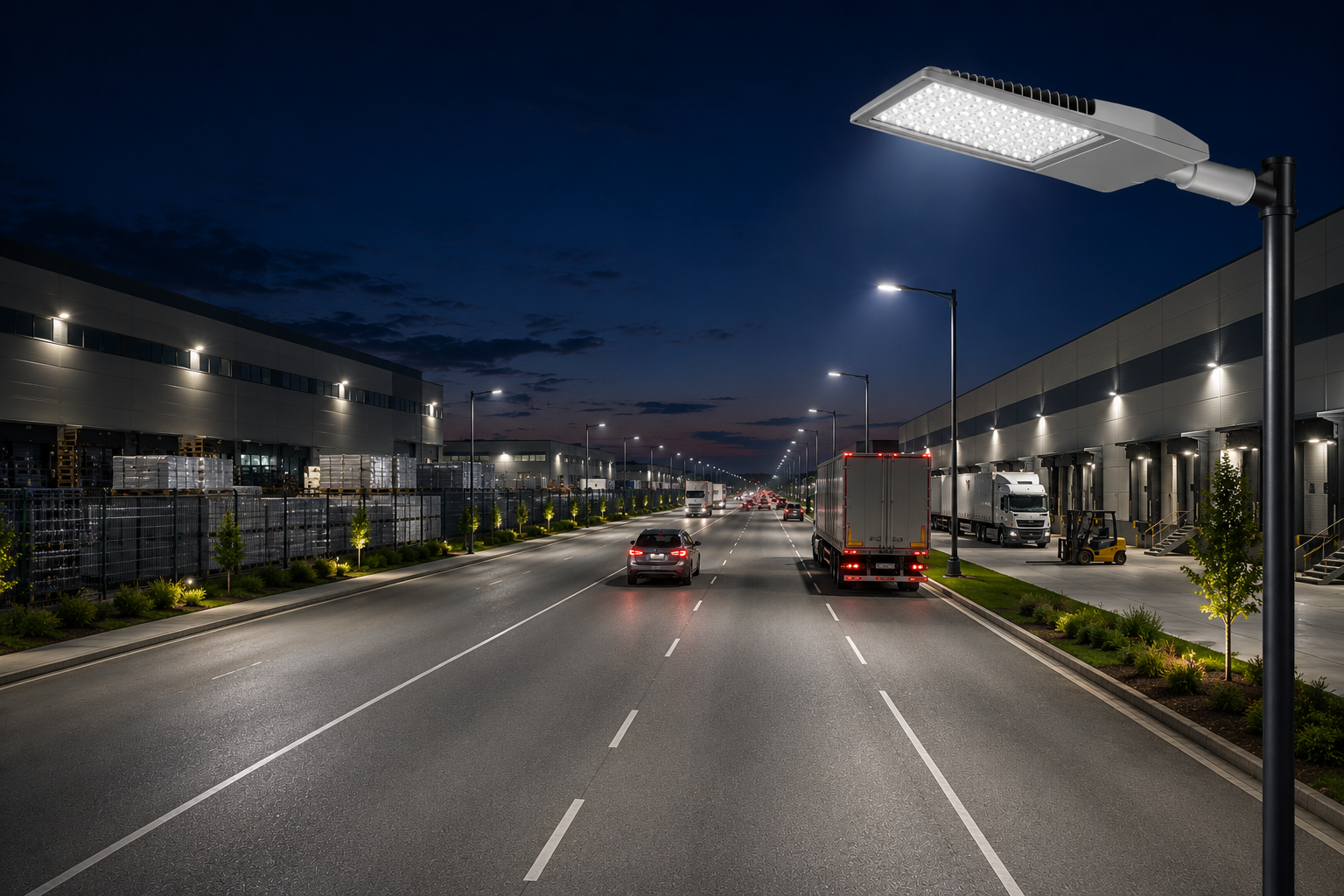

Reliable high-performance lighting for logistics centers, manufacturing facilities and industrial campuses requiring powerful, uniform illumination.

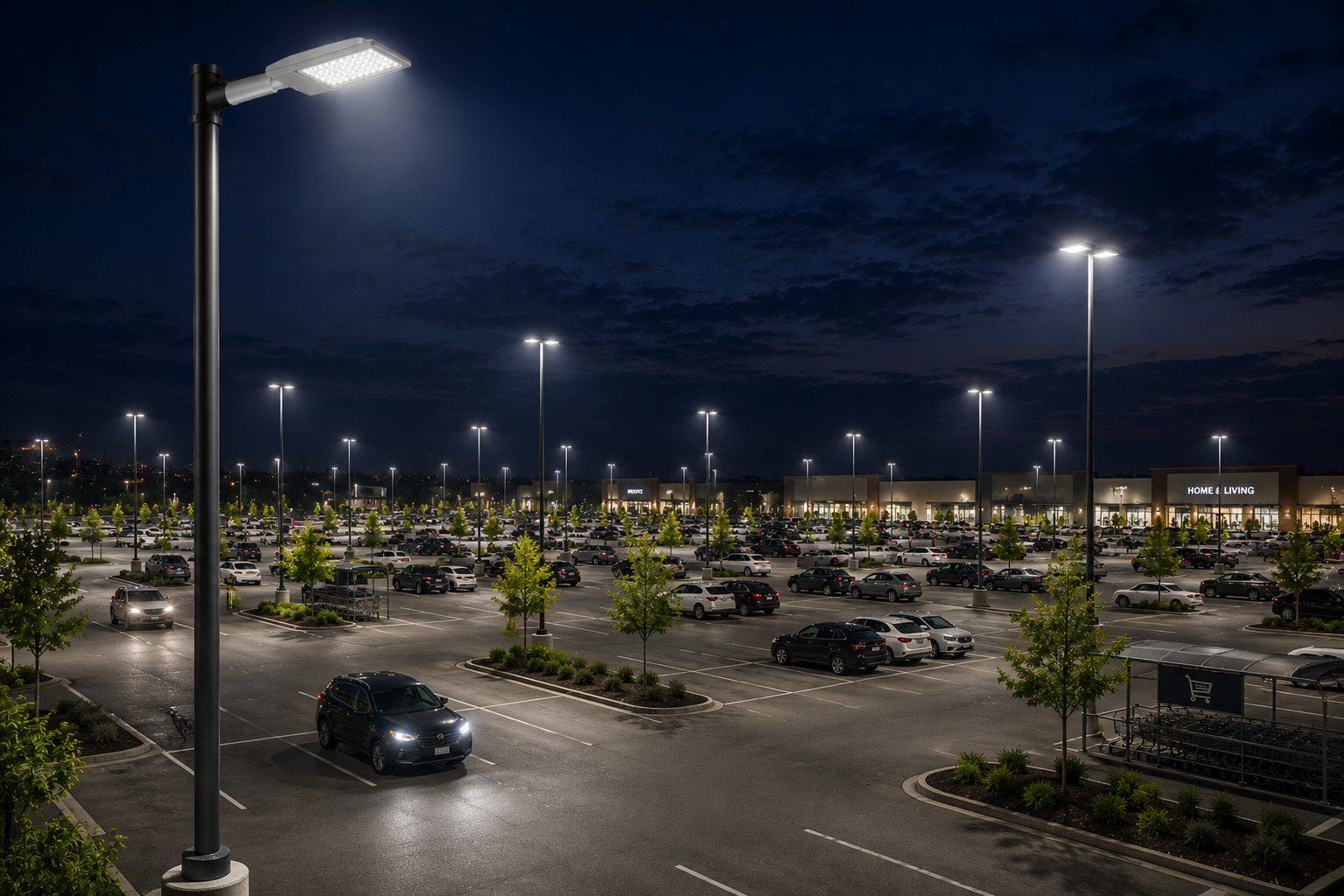

Ideal for large parking facilities, retail developments and commercial complexes where broad area coverage and long-term reliability are essential.

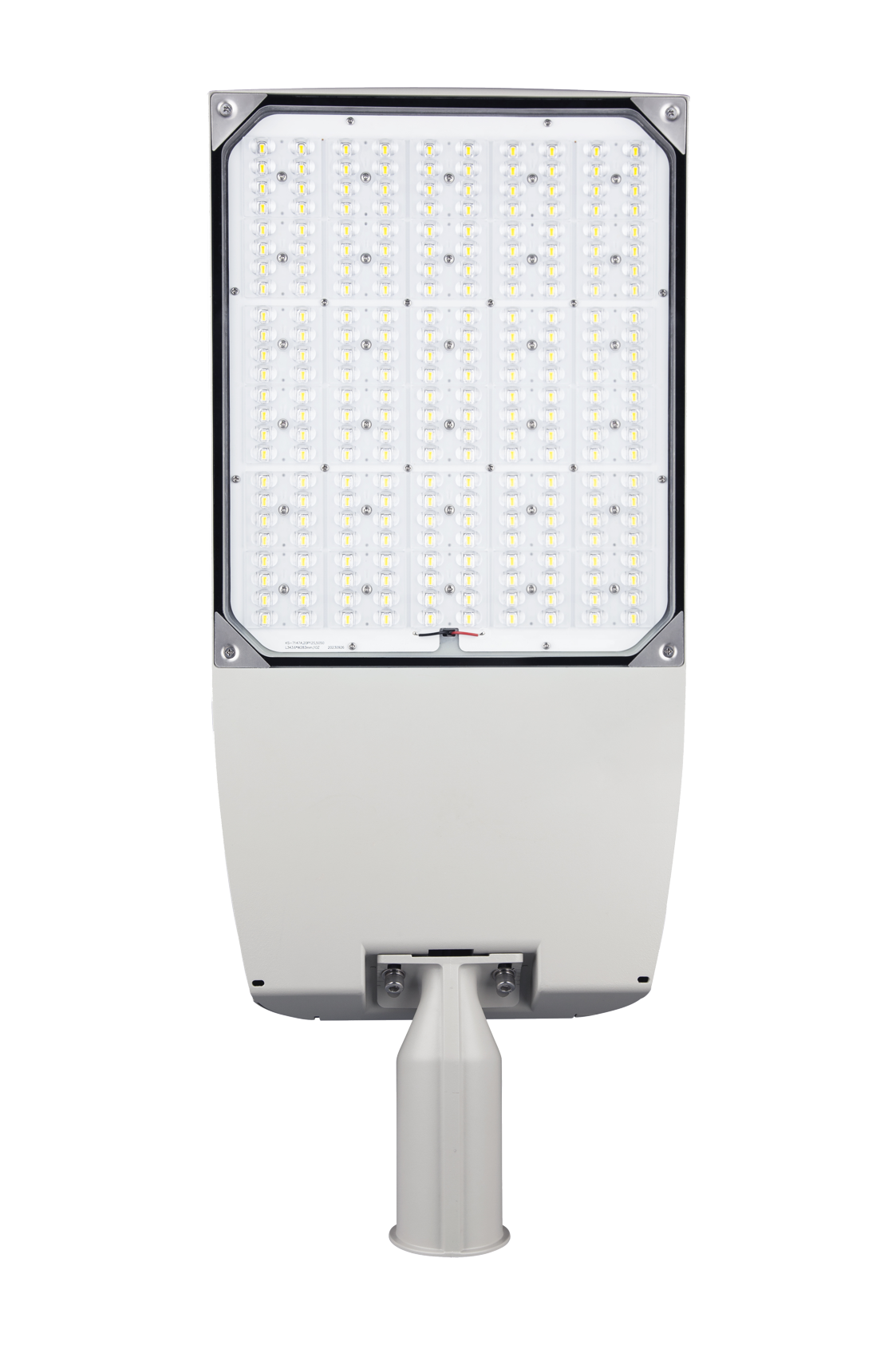

Powered by Inventronics drivers and OSRAM LEDs, delivering maximum efficiency, reliability and long-term performance.
Precision optics maximize roadway visibility while minimizing glare and wasted light.

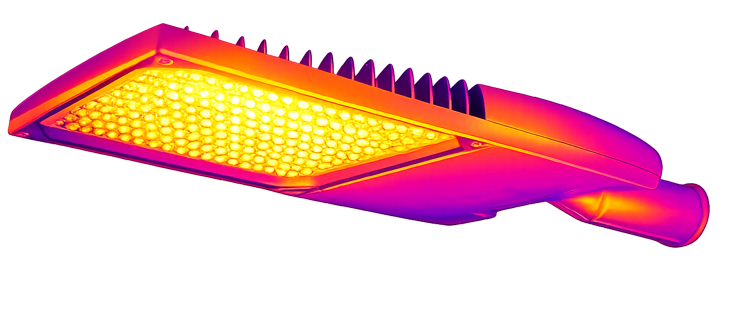

Thermally optimized to maintain target operating temperatures, supporting consistent performance and a 100,000-hour design life.

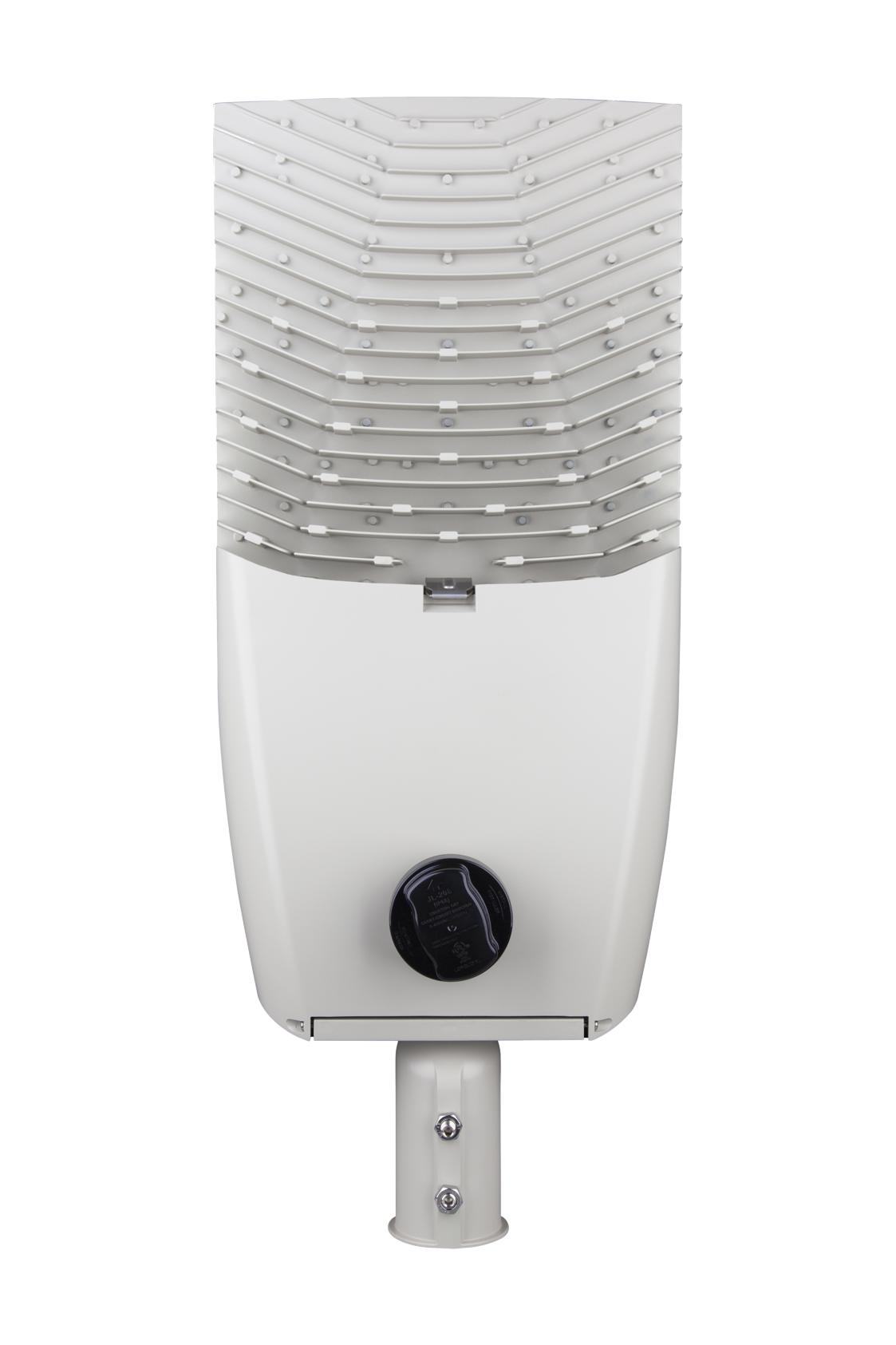

Die-cast aluminum housing, coating, gaskets and tempered glass engineered for demanding outdoor environments.
Typical electrical and photometric performance at 4000K CCT, CRI 70 and Ta = 25°C (77°F). Values may vary depending on optics and operating conditions.
Available light options and distributions
Multiple LED and optical configurations are available to meet different project requirements.
Available Light Distribution Types
Multiple LED and optical configurations are available to meet different project requirements.
Residential streets, pathways and narrow roadways.
Local roads, collector streets and parking areas.
Perimeter lighting, intersections and large roadway applications.
Open areas, plazas and parking facilities.
Illustrations are for reference only. For certified photometric data and detailed light distribution characteristics, please refer to the corresponding IES files.
Power, Controls & Operating Conditions
VECTOR platform is available in Low Voltage (LV) and High Voltage (HV) configurations to support different electrical infrastructures.

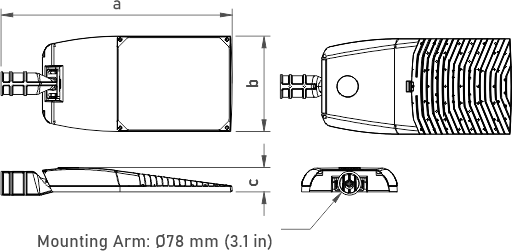

Complete mechanical specifications including dimensions, weight, EPA, mounting compatibility and housing construction for accurate project planning and installation.
Specifications shown are typical values. Dimensions and weight may vary depending on configuration and selected options.
Configure VECTOR S with optional control accessories, mounting interfaces and protection features to meet project-specific requirements.
Supports NEMA 7-pin photocells and smart lighting controllers for automatic operation and connected lighting systems.
Compatible with Zhaga Book 18 sensors and D4i control nodes, enabling future-ready smart lighting applications.
Available with 10 kA or 20 kA surge protection for enhanced reliability in electrically demanding environments.
Standard Ø60 mm (3.1 in) side-entry mounting arm provides secure installation and compatibility with common roadway poles.
Download product documentation including the datasheet, IES photometric files, installation guide and warranty information.
Need additional documentation or product support? Contact our engineering team.
Access available test reports, certification documents and warranty terms supporting product specification, compliance review and project approval.
Some documents may not yet be available as we continue expanding our technical documentation.
