FLOODLIGHT PLATFORM
Engineered for Maximum Power Floodlighting
Designed for stadiums, ports, airports, industrial facilities and large outdoor areas where maximum lumen output, long-throw optics and exceptional reliability are required.
View product details, optical assembly, housing design, mounting interface and available configurations.

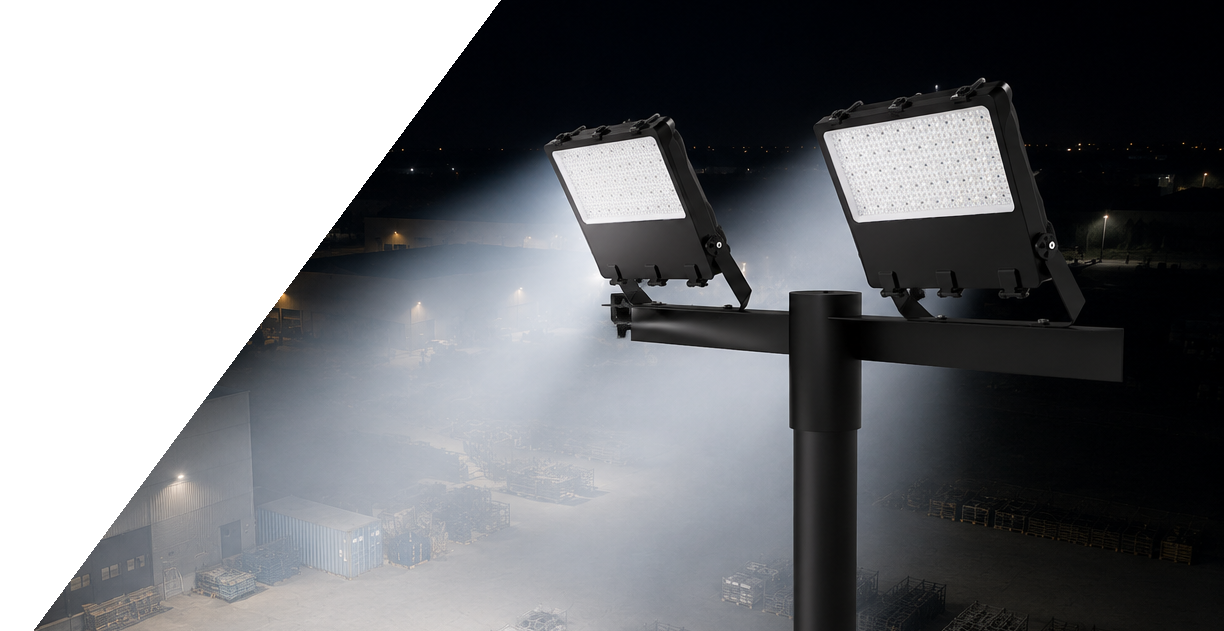

TENSOR XL is engineered for high-output industrial, infrastructure and sports lighting applications, delivering exceptional lumen output, precision optics and dependable long-term performance for stadiums, ports, airports, logistics centres and other large outdoor facilities.
Designed for high-mast installations, delivering powerful illumination and excellent uniformity for large outdoor areas from greater mounting heights.

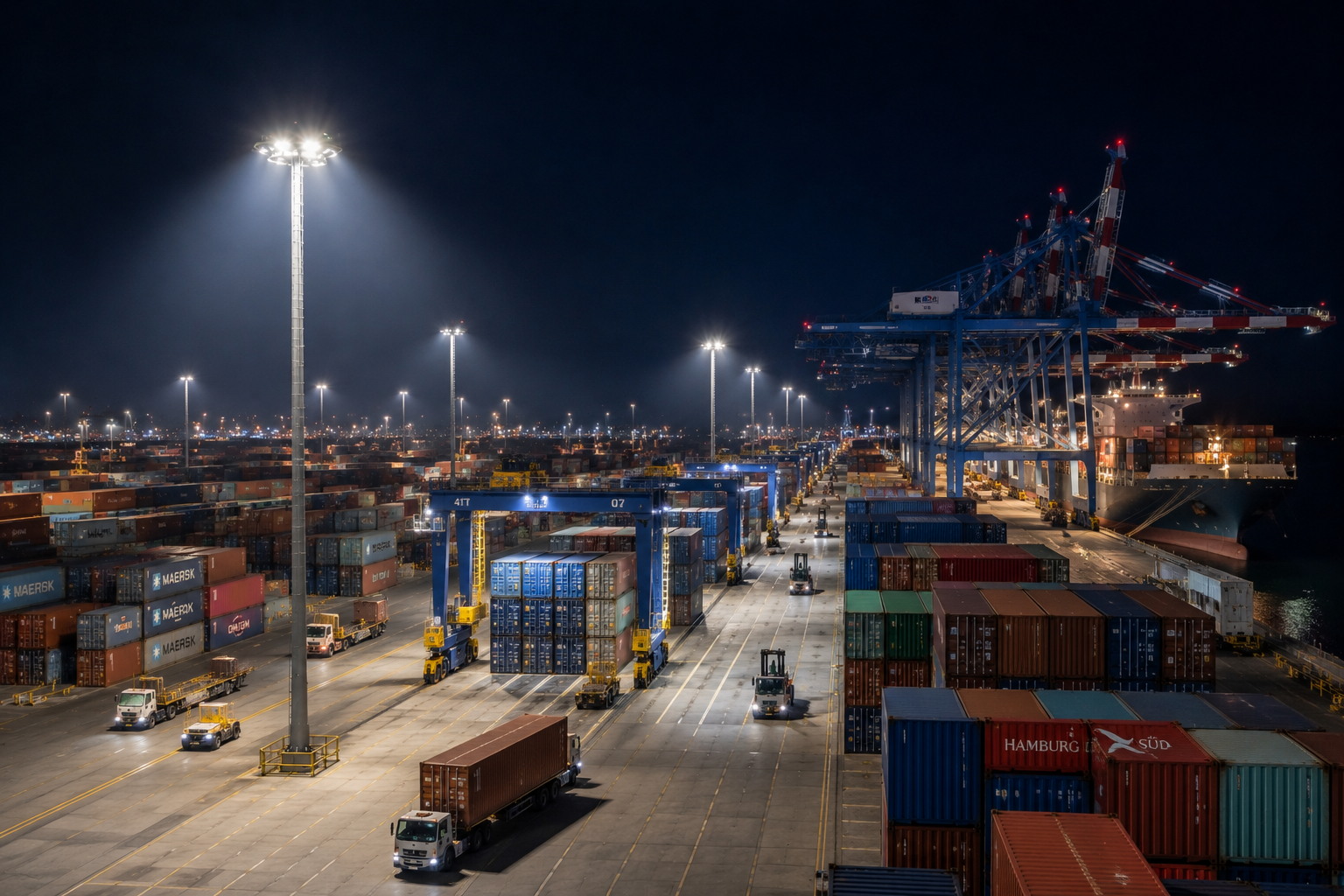

Provides high-output lighting for ports, container yards and cargo terminals, ensuring visibility, operational safety and reliable nighttime performance.

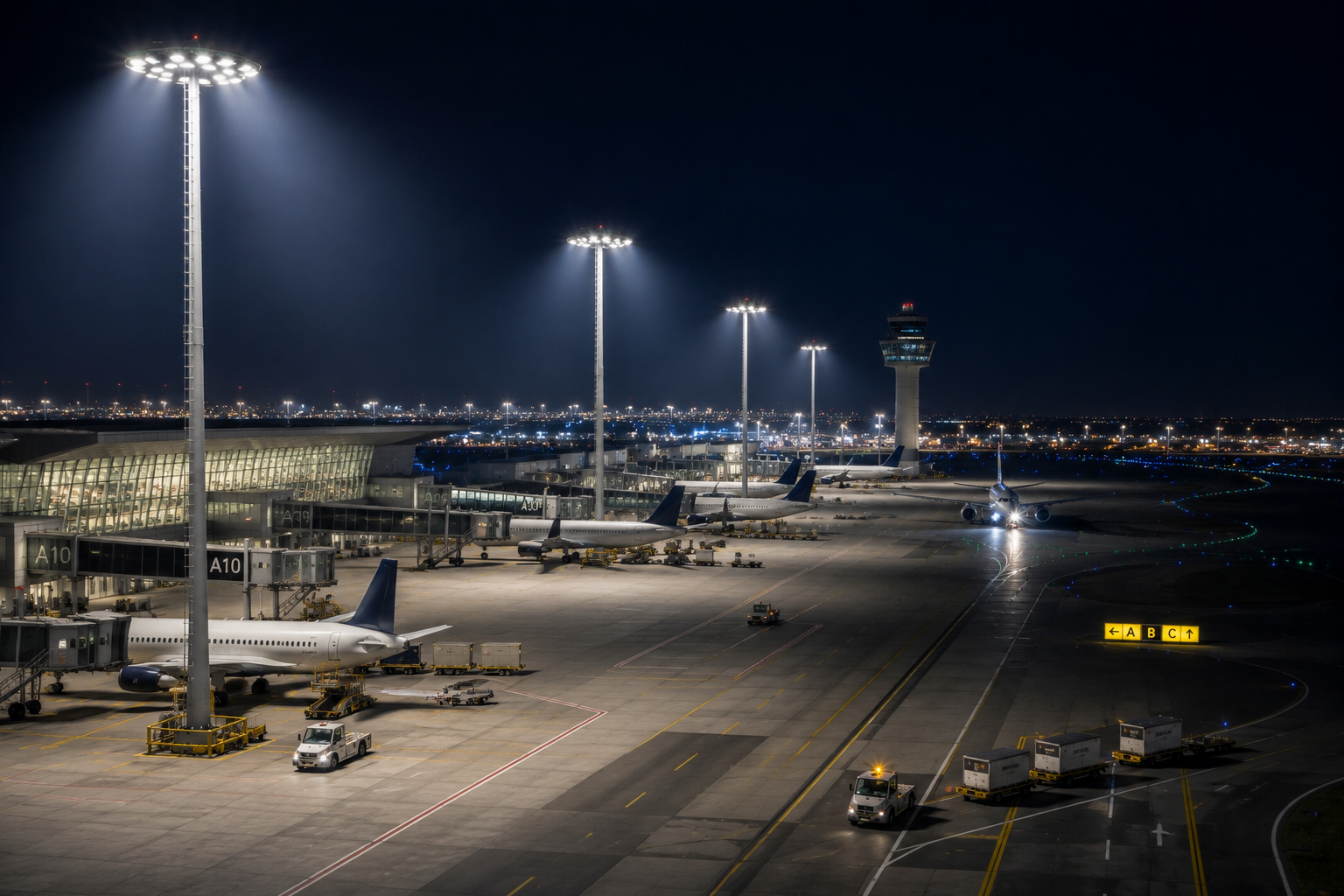

Engineered for airport aprons, transportation infrastructure and other large-scale facilities requiring wide-area illumination and dependable operation.

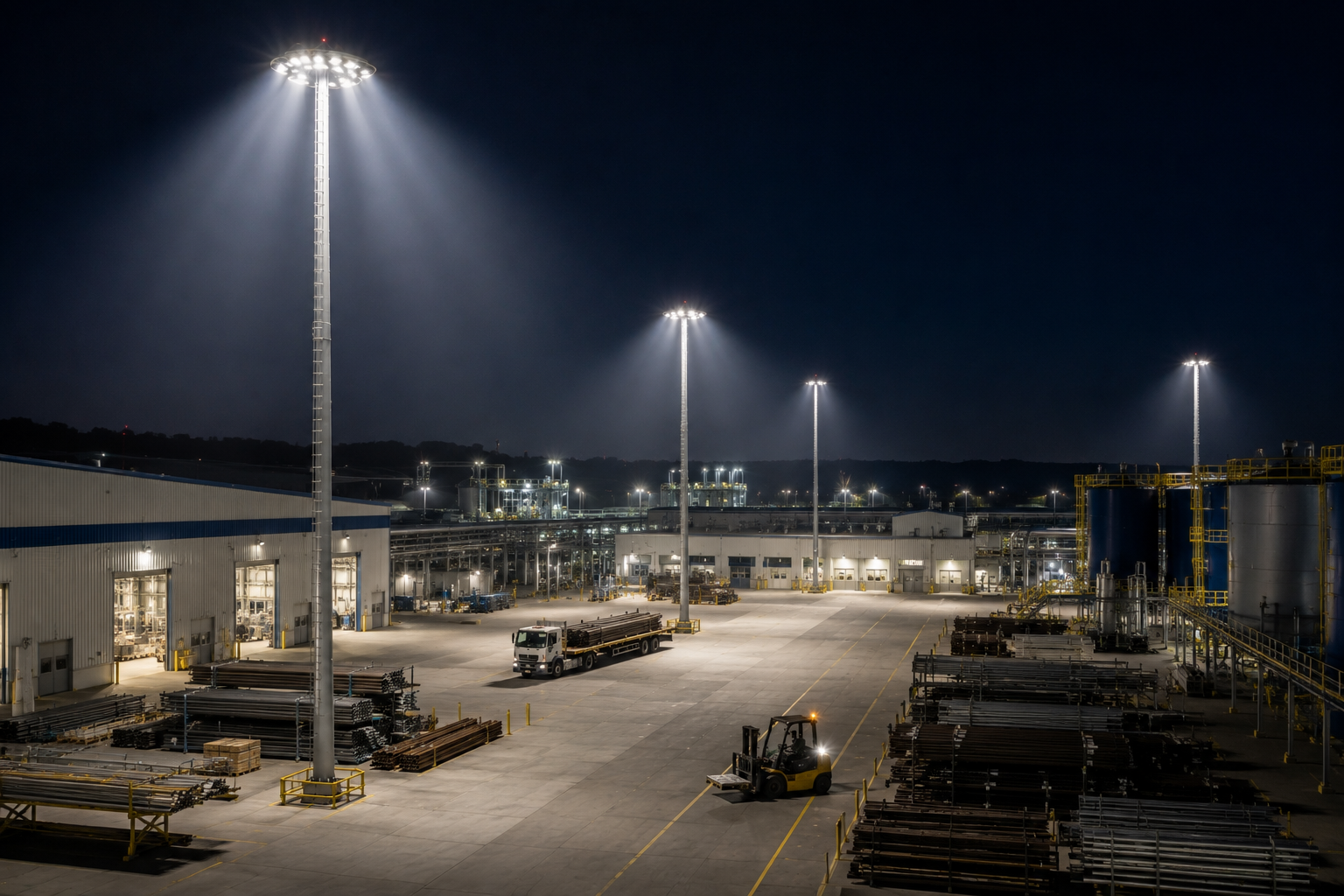

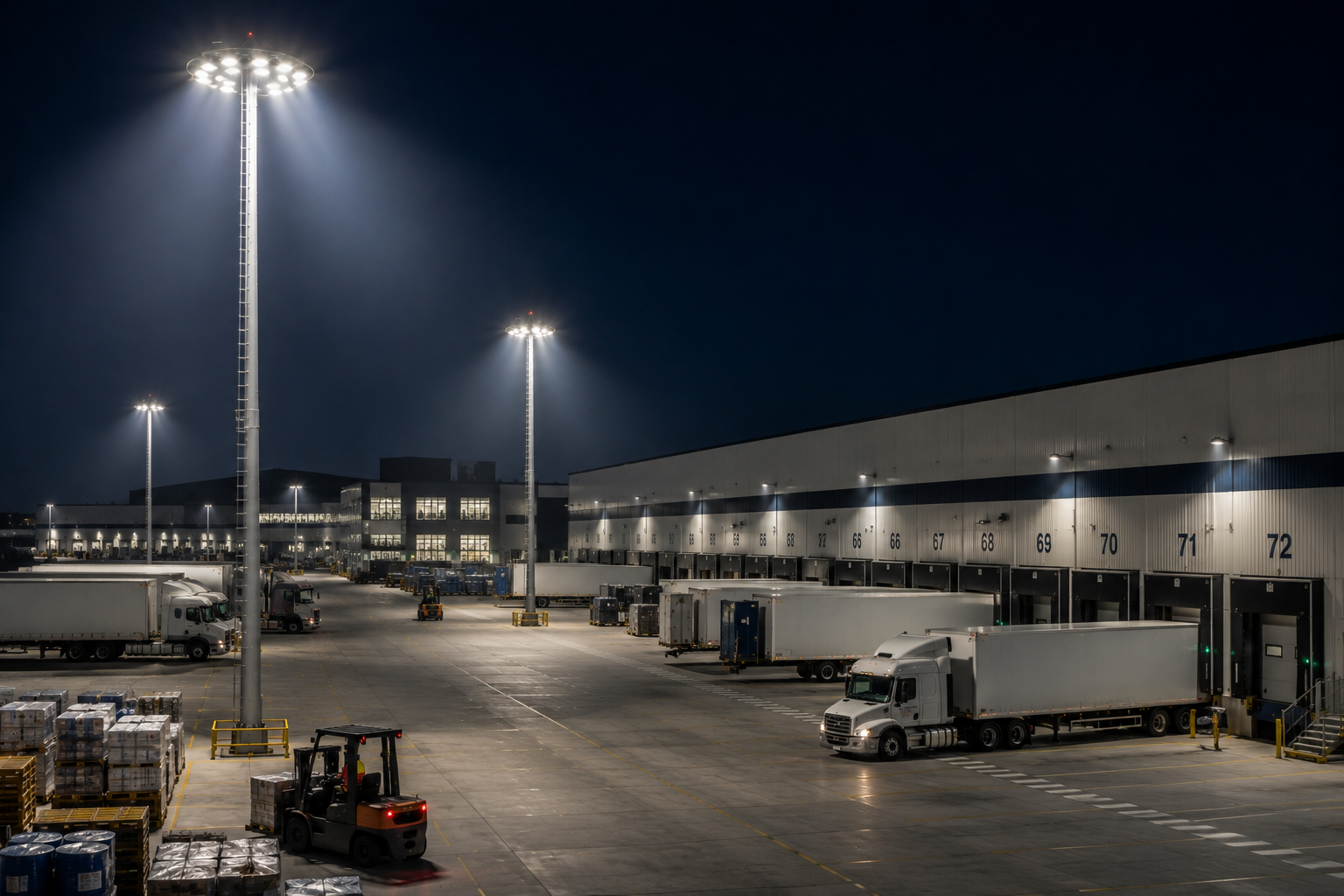

Delivers powerful, uniform lighting for industrial plants, logistics centres and distribution yards where long-throw performance and high reliability are essential.

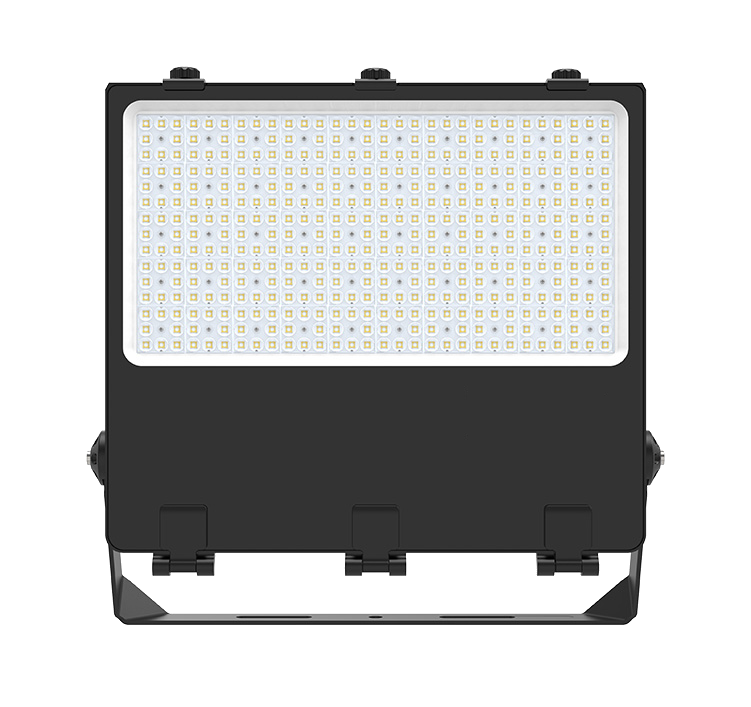

Built with premium Meanwell drivers and Lumileds LEDs for maximum efficiency, electrical reliability and extended service life.
Precision optical systems deliver accurate beam control, minimizing spill light while maximizing illumination exactly where it is needed.

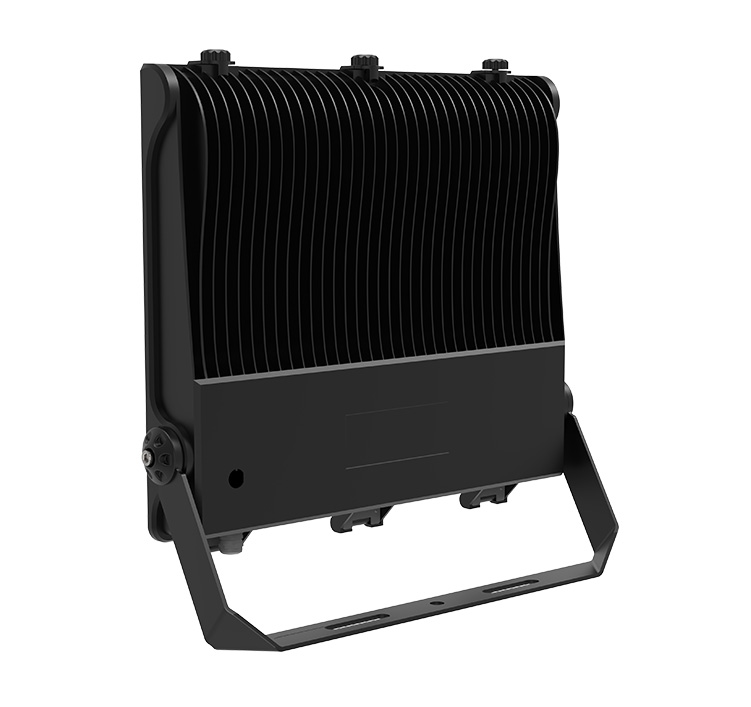

Thermally optimized to maintain target operating temperatures, supporting consistent performance and a 100,000-hour design life.
Die-cast aluminum housing with tempered glass, corrosion-resistant coating and IP66 protection for demanding outdoor environments.
Typical electrical and photometric performance at 4000K CCT, CRI 70 and Ta = 25°C (77°F). Values may vary depending on optics and operating conditions.
Available light options and distributions
Configurable CCTs, CRI options and optical distributions provide the flexibility required for commercial, sports and architectural lighting projects.
System efficacy depends on selected optics, CCT, drive current and operating conditions.

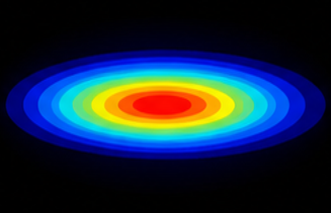

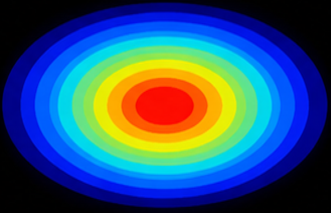

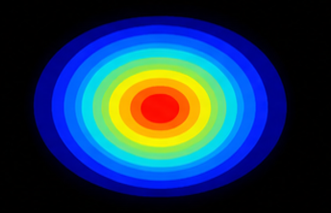

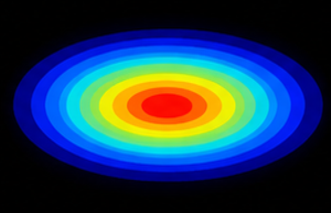

Available Beam Distributions
Precision optical distributions optimized for commercial, architectural and sports lighting applications.

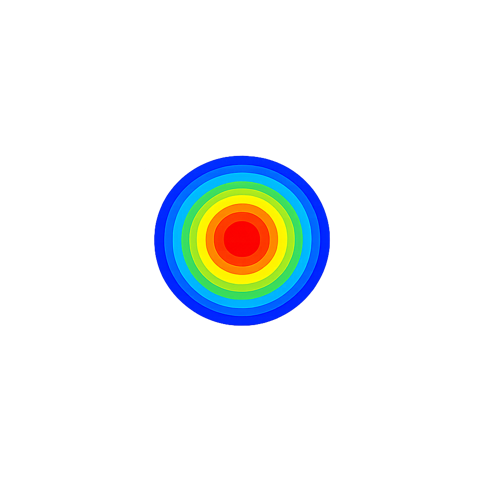

Narrow beam for long-throw lighting, high mast installations and accent illumination.
Medium beam for building facades, warehouses and general commercial floodlighting.
Wide beam for parking areas, loading docks and commercial site illumination.
Extra-wide beam for open spaces, plazas and uniform area lighting.
Ideal for roadways, perimeter lighting and linear areas requiring extended forward coverage with controlled lateral spread.
Designed for parking areas, loading docks and commercial sites where wide horizontal illumination improves uniformity.
Optimized for pedestrian pathways, plazas and public spaces with balanced forward light distribution and visual comfort.
Engineered for parking lots, open commercial areas and site lighting requiring broad, uniform illumination.

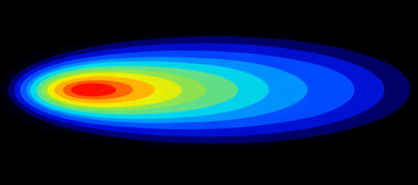

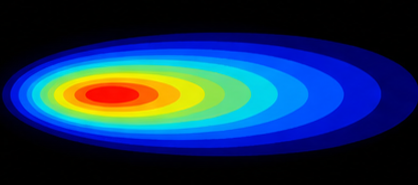

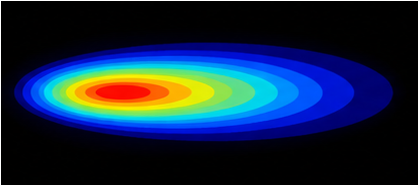

Forward-throw distribution for sports courts, building facades and architectural lighting with minimized spill light.
Long forward distribution for logistics yards, industrial facilities and loading areas requiring extended reach.
Wide forward-throw optics for large industrial sites, transportation facilities and high-mount floodlighting applications.
Illustrations are for reference only. For certified photometric data and detailed light distribution characteristics, please refer to the corresponding IES files.
Power, Controls & Operating Conditions
TENSOR XL platform is available in Low Voltage (LV) and High Voltage (HV) configurations to support different electrical infrastructures.

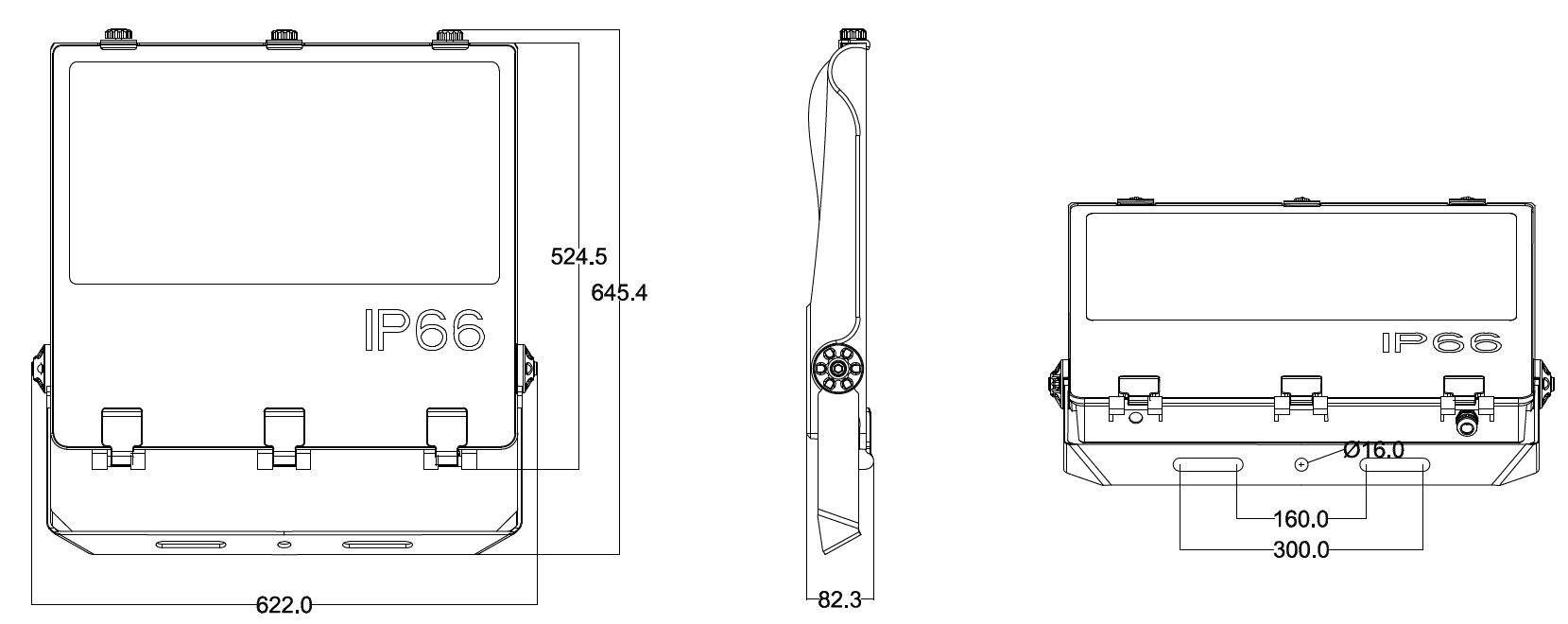

Complete mechanical specifications including dimensions, weight, EPA, mounting compatibility and housing construction for accurate project planning and installation.
Specifications shown are typical values. Dimensions and weight may vary depending on configuration and selected options.
Configure TENSOR XL with optional control accessories, mounting interfaces and protection features to meet project-specific requirements.

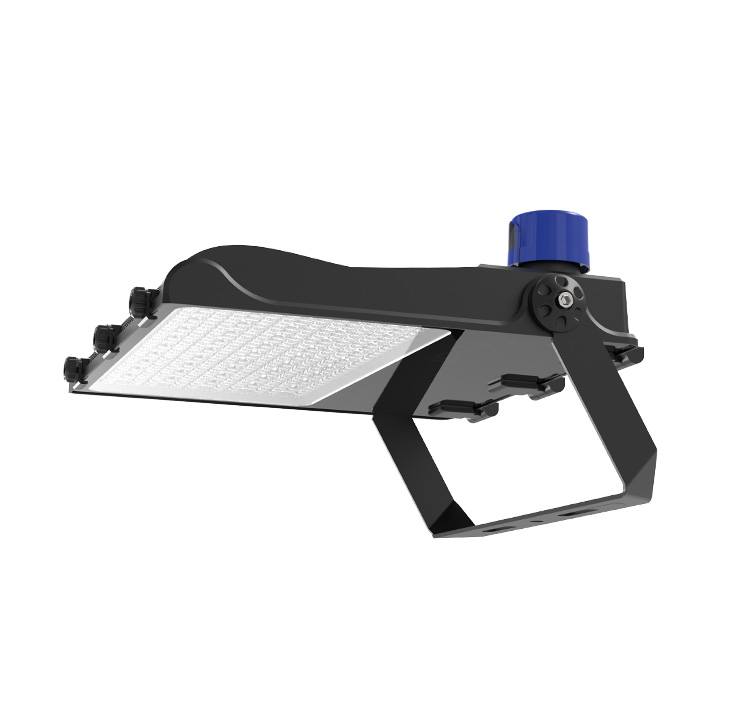

Supports NEMA 3-pin photocells and smart lighting controllers for automatic operation and connected lighting systems.
Available with 10 kA or 20 kA surge protection for enhanced reliability in electrically demanding environments.

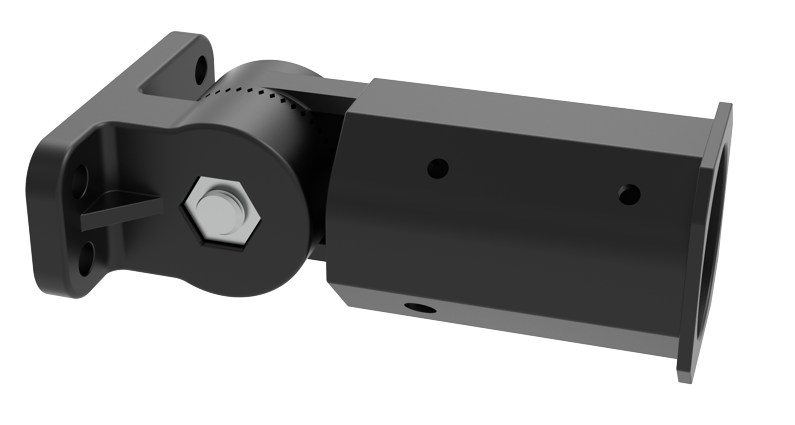

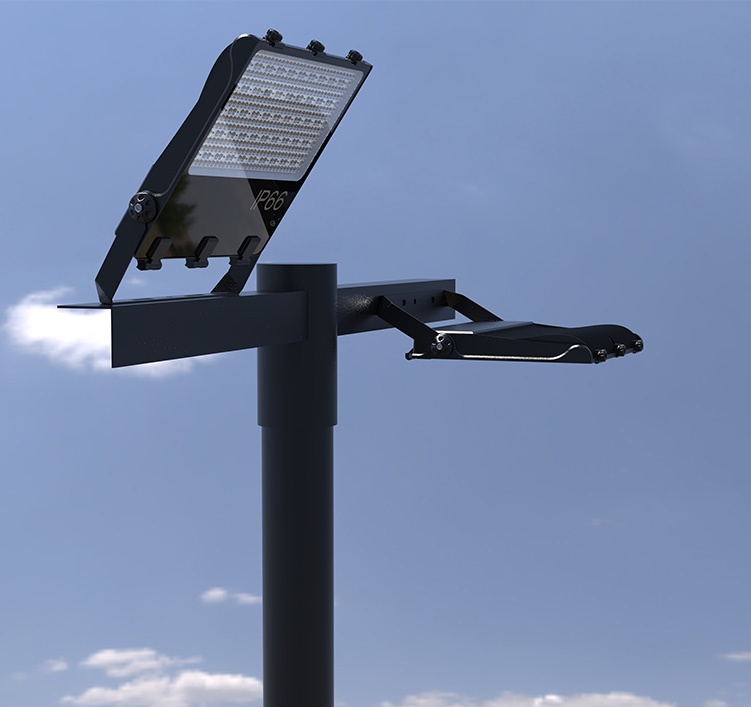

Standard Ø60 mm (2.38 in) slip fitter provides secure side-entry mounting and is compatible with most roadway and area lighting poles.
Download product documentation including the datasheet, IES photometric files, installation guide and warranty information.
Need additional documentation or product support? Contact our engineering team.
Access available test reports, certification documents and warranty terms supporting product specification, compliance review and project approval.
Some documents may not yet be available as we continue expanding our technical documentation.
