HIGH MAST LUMINAIRE
Engineered for High Mast Lighting
Designed for highways, major interchanges, airports, ports, logistics terminals and large industrial facilities requiring high-output illumination, precision optical control and dependable long-term performance.

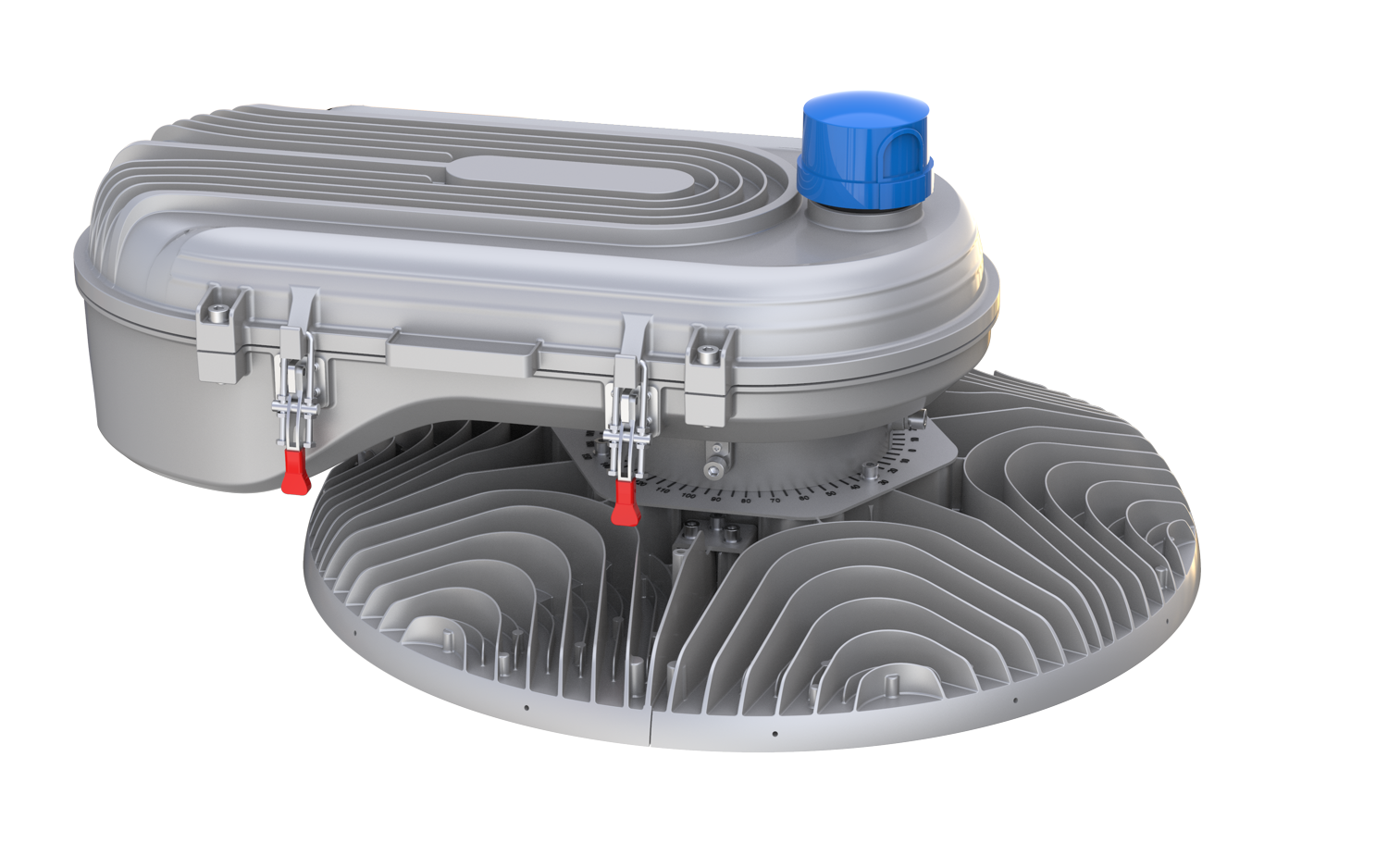

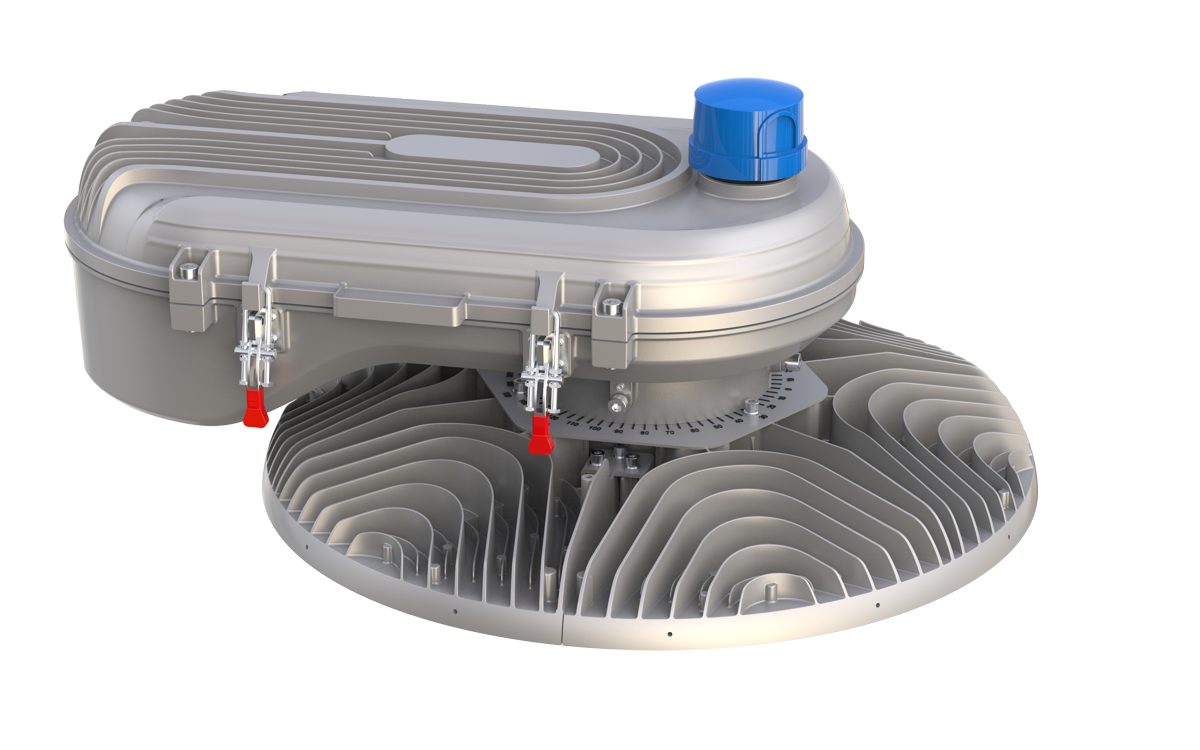

View product details, optical assembly, housing design, mounting interface and available configurations.
RADIAL L is engineered for highways, interchanges, airports, ports and large industrial facilities where maximum coverage, uniform illumination and long-term reliability are critical.

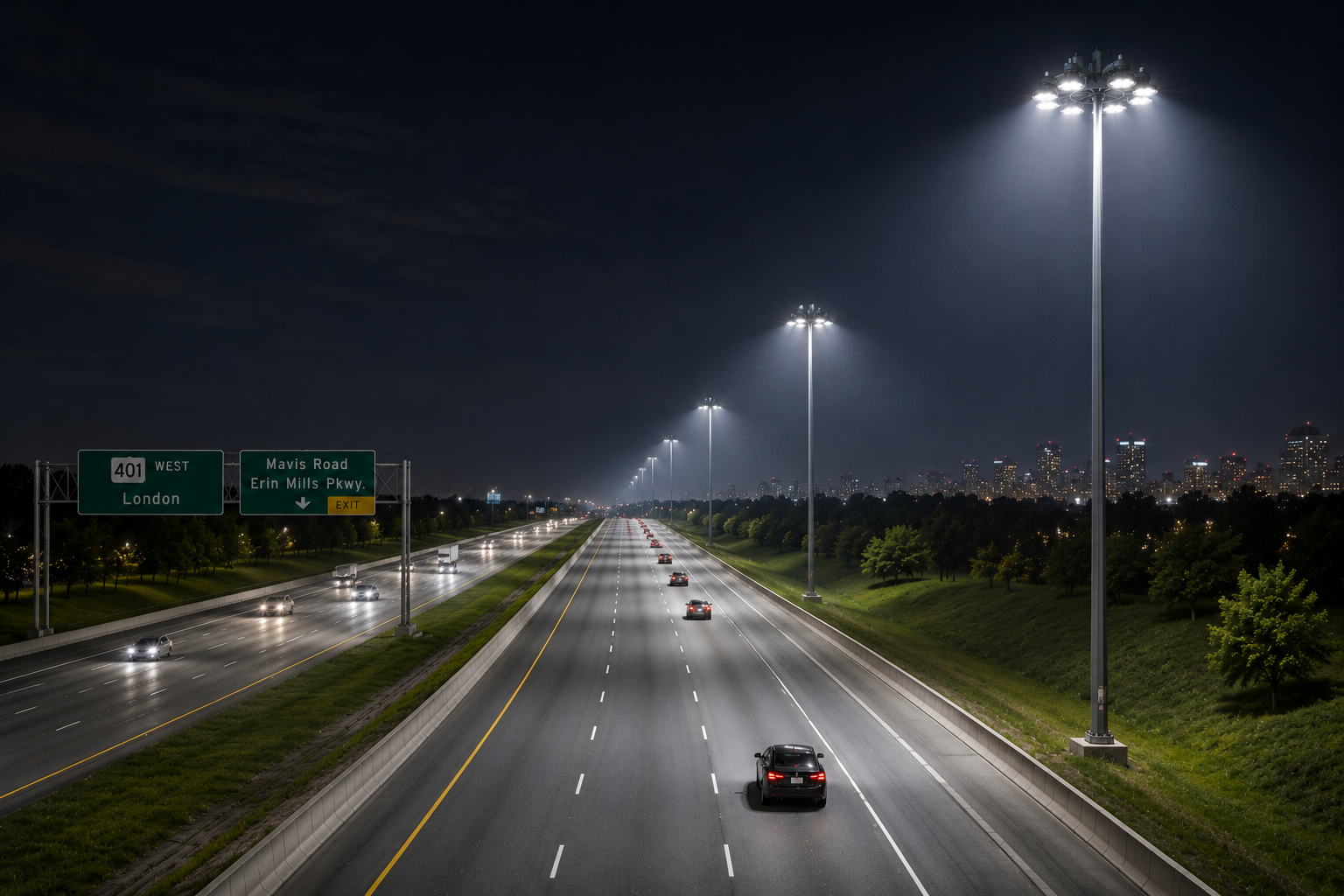

Uniform, high-output illumination for expressways and major transportation corridors, improving nighttime visibility, driver comfort and road safety.

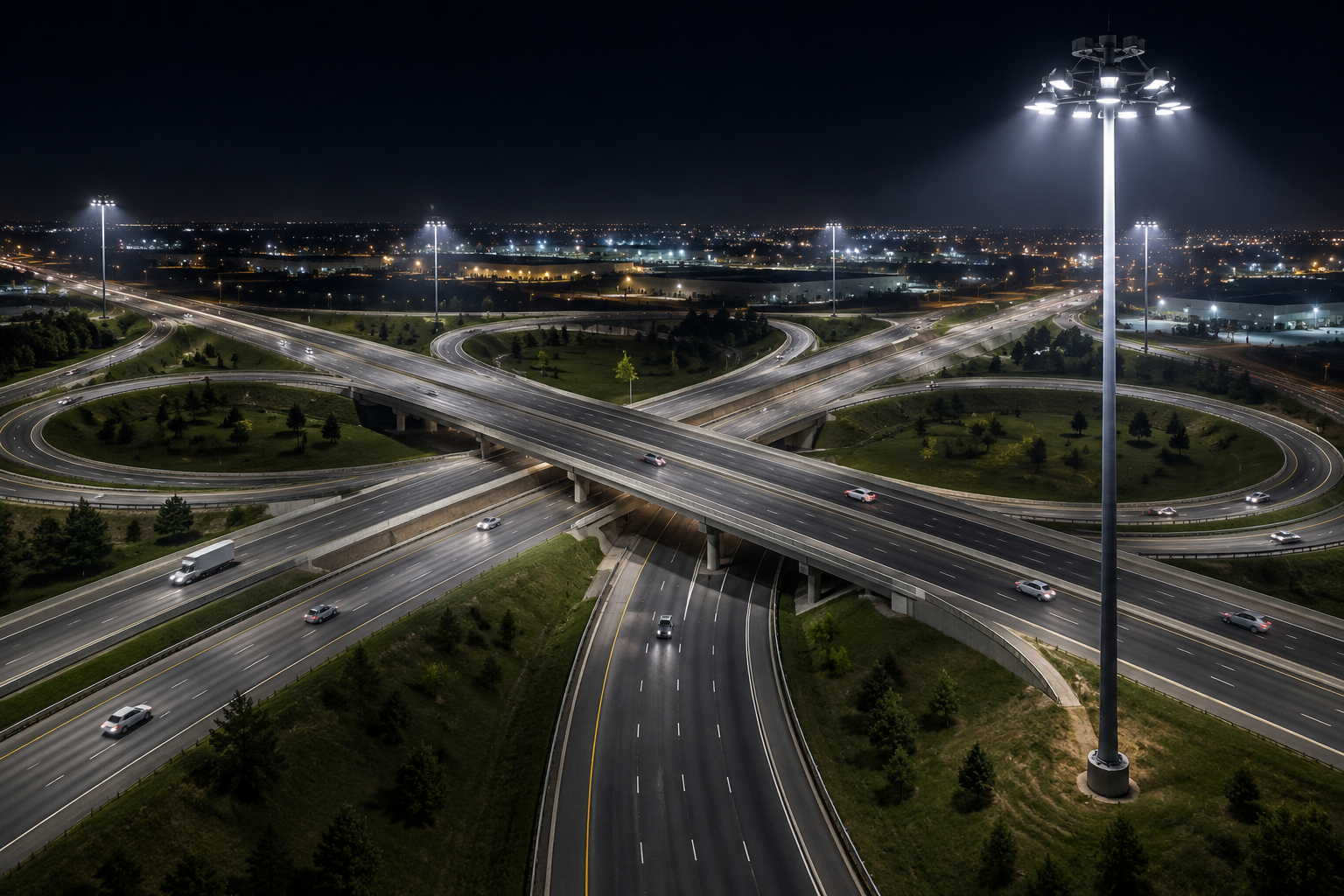

Wide-area lighting for complex highway junctions, ramps and interchanges with excellent optical control and minimal dark zones.

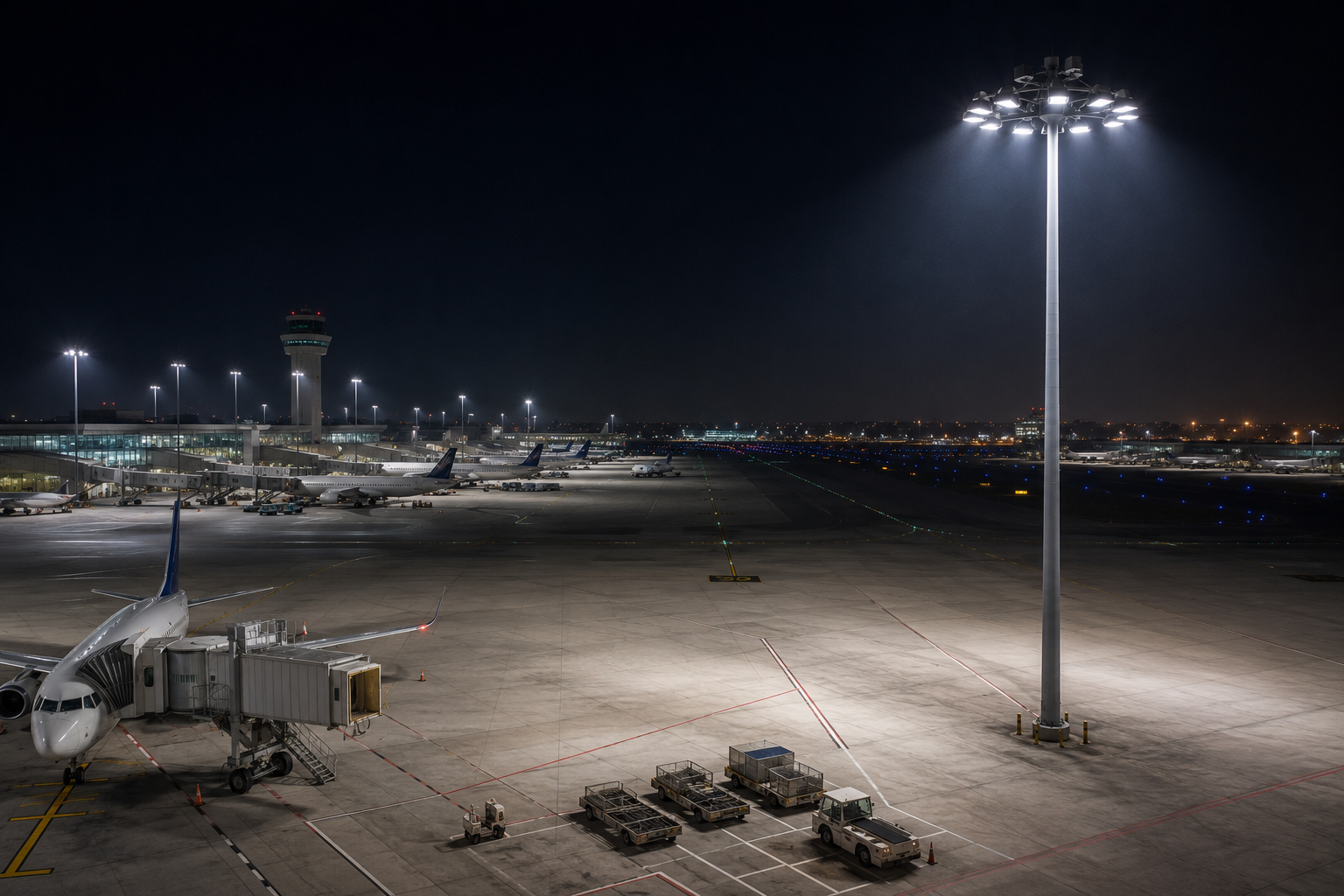

Reliable illumination for aprons, service roads and airside infrastructure requiring high mounting heights and consistent light distribution.

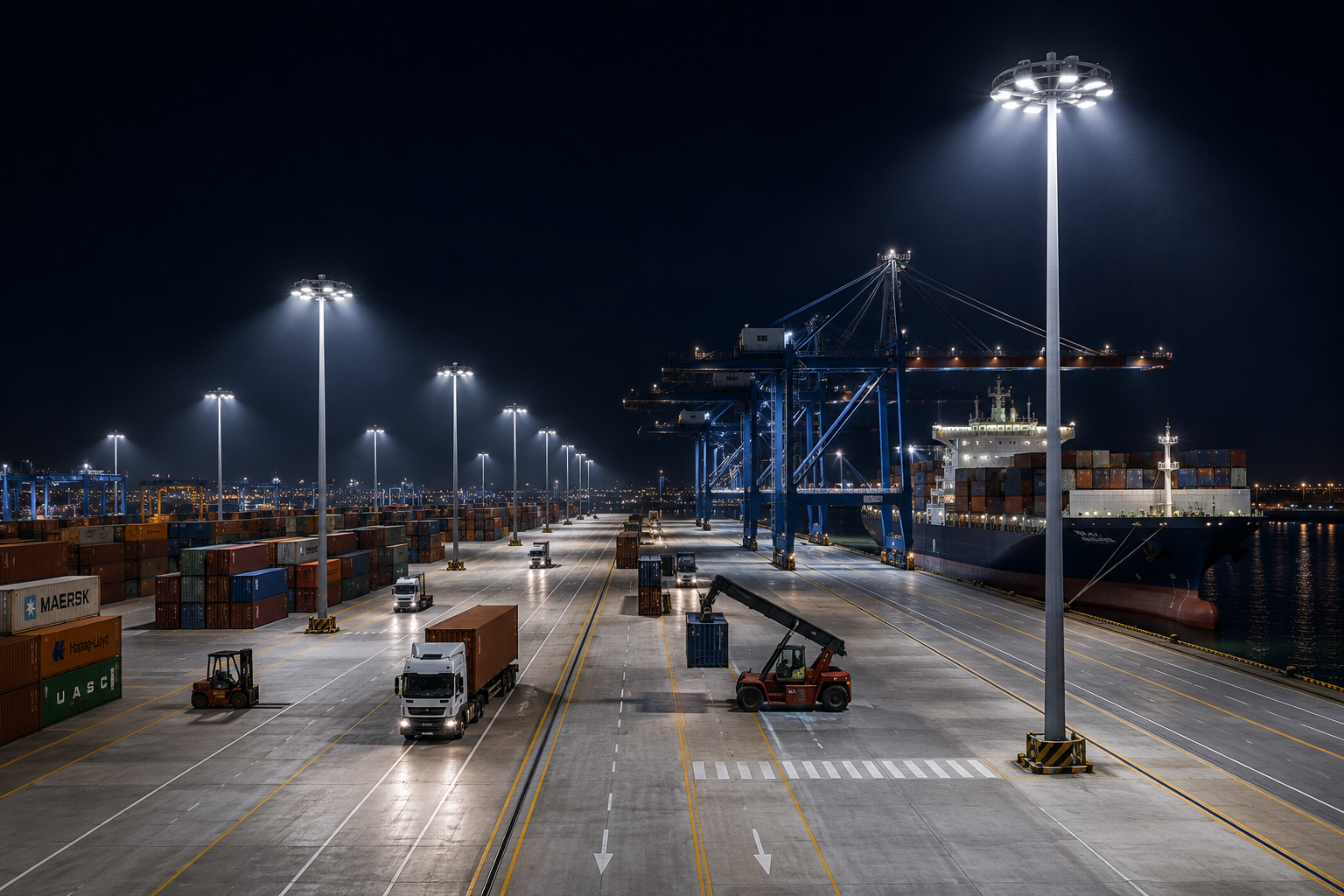

Powerful, uniform lighting for container terminals, cargo yards and logistics facilities, supporting safe 24/7 operations.
Powered by Inventronics drivers and Lumileds LEDs, delivering maximum efficiency, reliability and long-term performance.

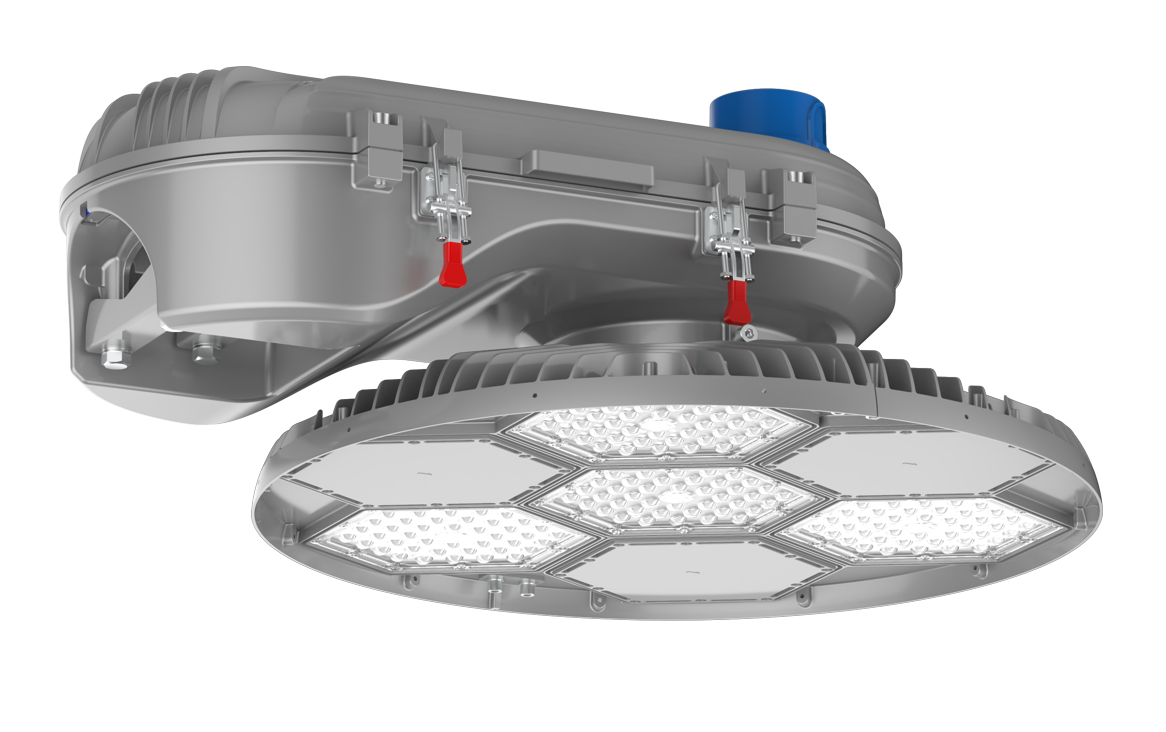

Precision optics maximize roadway visibility while minimizing glare and wasted light.
Thermally optimized to maintain target operating temperatures, supporting consistent performance and a 100,000-hour design life.

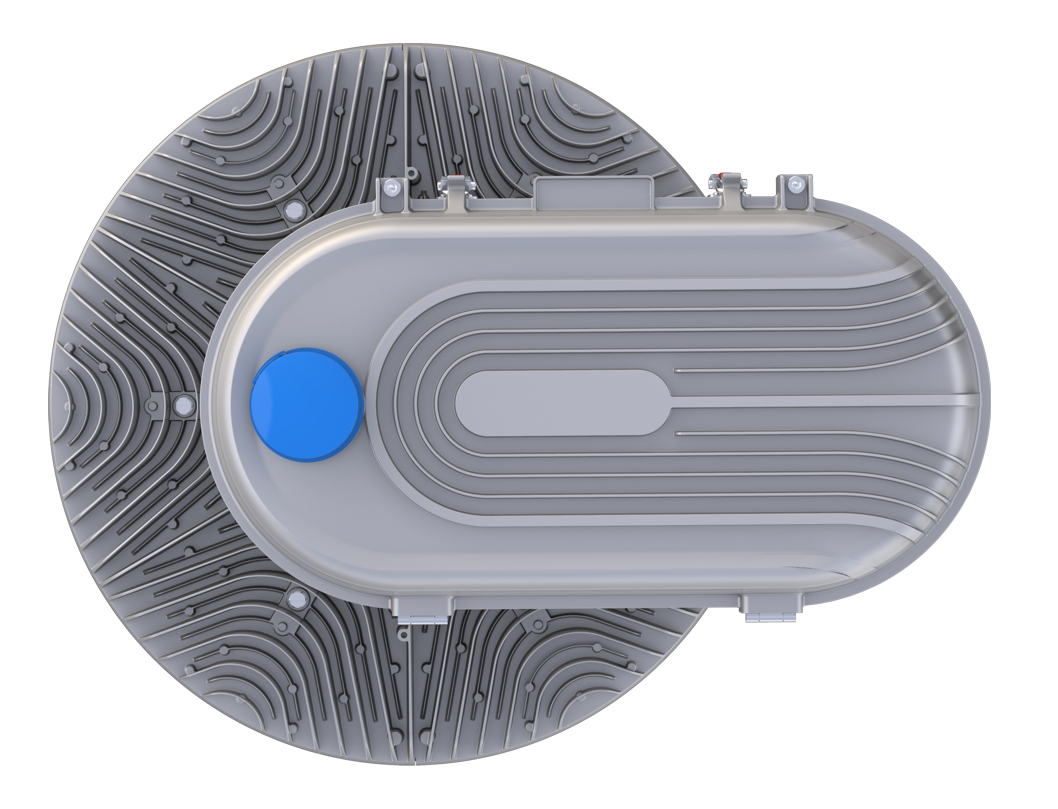

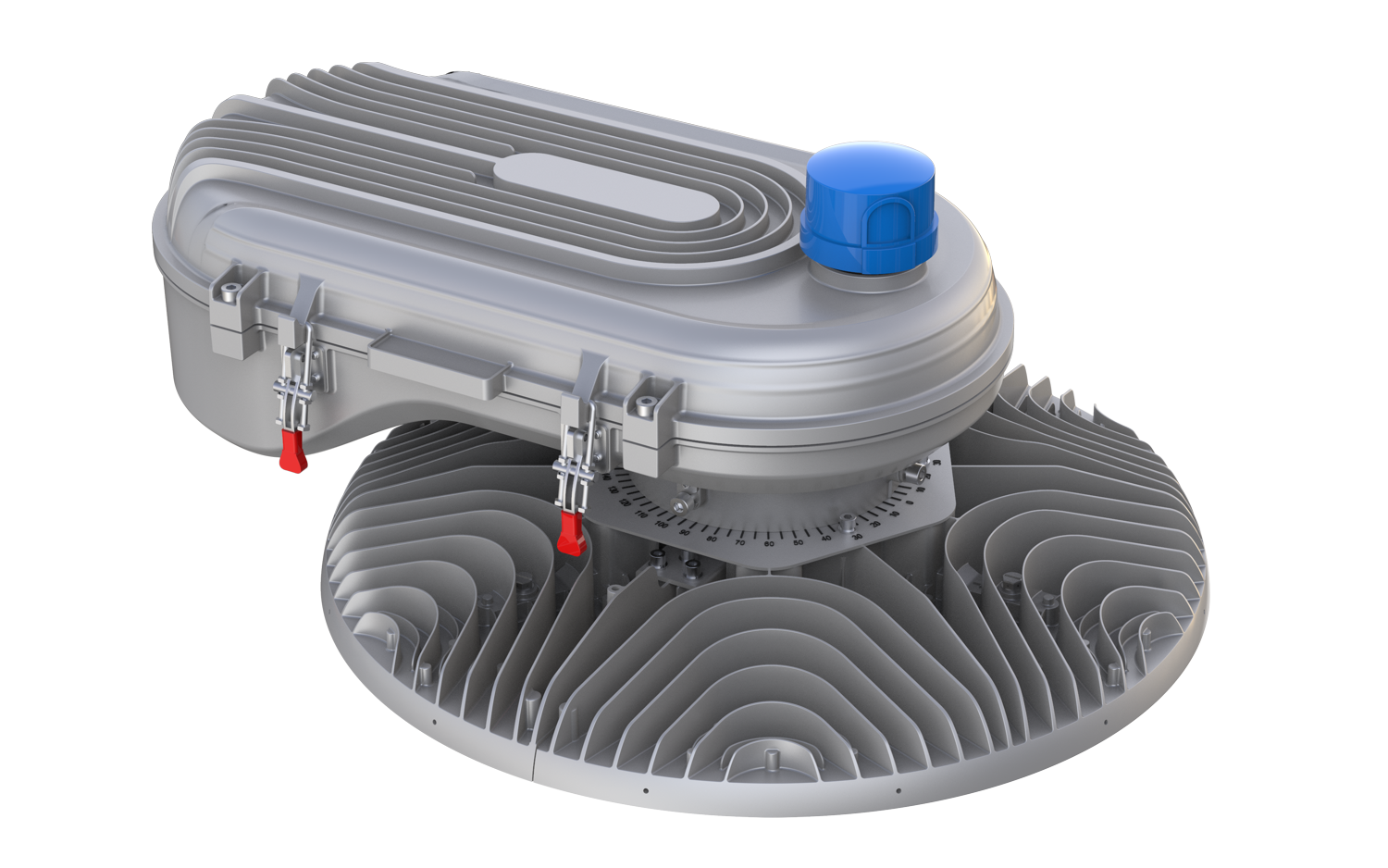

Die-cast aluminum housing, coating, gaskets and tempered glass engineered for demanding outdoor environments.
Typical electrical and photometric performance at 5700K CCT, CRI 70 and Ta = 25°C (77°F). Values may vary depending on optics and operating conditions.
Available light options and distributions
Multiple LED and optical configurations are available to meet different project requirements.
Available Light Distribution Types
Engineered optical distributions for high mast lighting applications, delivering precise illumination for highways, interchanges, airports, ports and large outdoor infrastructure.

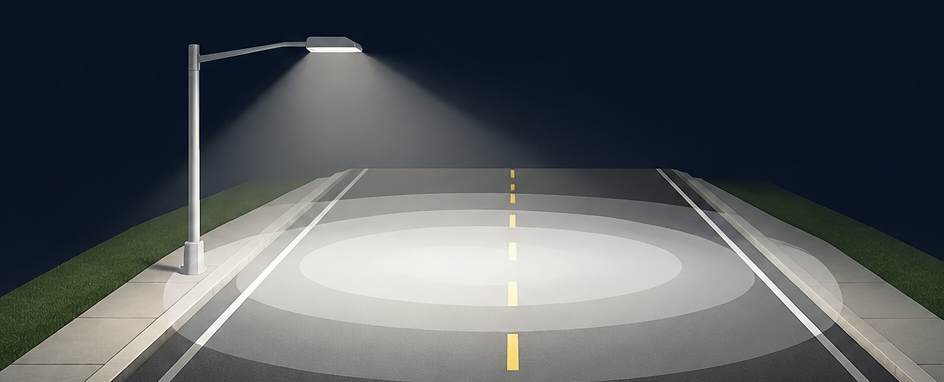

Optimized for highway corridors, ramps and directional roadway applications requiring long, narrow light distribution.
Designed for highway interchanges, arterial roads and perimeter-mounted high mast installations with wide forward coverage.
Ideal for logistics terminals, industrial facilities, container yards and edge-mounted high mast applications.
Symmetrical wide-area distribution for centrally mounted high mast systems in airports, ports, transportation hubs and expansive open areas.
Illustrations are for reference only. For certified photometric data and detailed light distribution characteristics, please refer to the corresponding IES files.
Power, Controls & Operating Conditions
RADIAL L platform is available in Low Voltage (LV) and High Voltage (HV) configurations to support different electrical infrastructures.

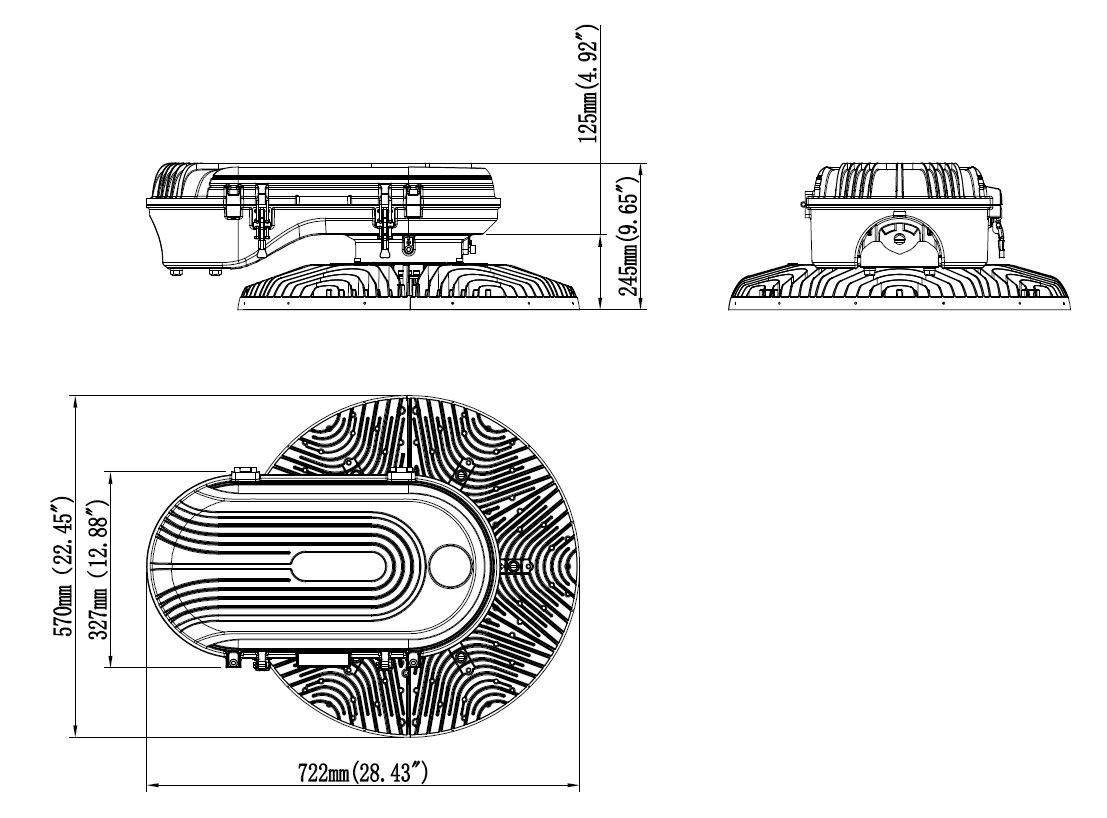

Complete mechanical specifications including dimensions, weight, EPA, mounting compatibility and housing construction for accurate project planning and installation.
Specifications shown are typical values. Dimensions and weight may vary depending on configuration and selected options.
Configure RADIAL L with optional control accessories, mounting interfaces and protection features to meet project-specific requirements.
Supports NEMA 7-pin photocells and smart lighting controllers for automatic operation and connected lighting systems.

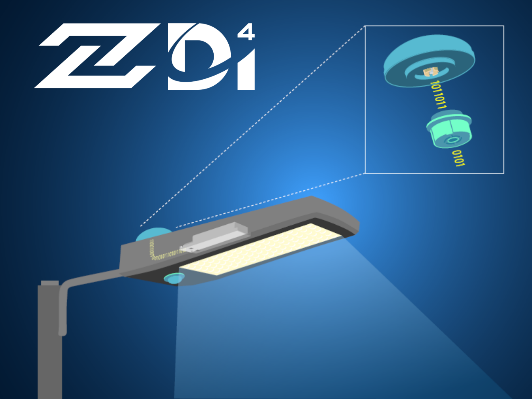

Compatible with Zhaga Book 18 sensors and D4i control nodes, enabling future-ready smart lighting applications.
Available with 10 kA or 20 kA surge protection for enhanced reliability in electrically demanding environments.
Heavy-duty adjustable mounting bracket provides secure installation and precise aiming for high mast lighting applications.
Download product documentation including the datasheet, IES photometric files, installation guide and warranty information.
Need additional documentation or product support? Contact our engineering team.
Access available test reports, certification documents and warranty terms supporting product specification, compliance review and project approval.
Some documents may not yet be available as we continue expanding our technical documentation.
