HIGH BAY LUMINAIRE
Extreme High Output Performance
Engineered for very high mounting applications and large-scale industrial facilities requiring exceptional lumen output, powerful illumination and reliable performance.
View product details, optical assembly, housing design, mounting interface and available configurations.
AXIAL XXL is engineered for very high mounting applications, heavy manufacturing facilities and large-scale industrial environments, delivering up to 85,000 lumens of powerful illumination for expansive and demanding spaces.

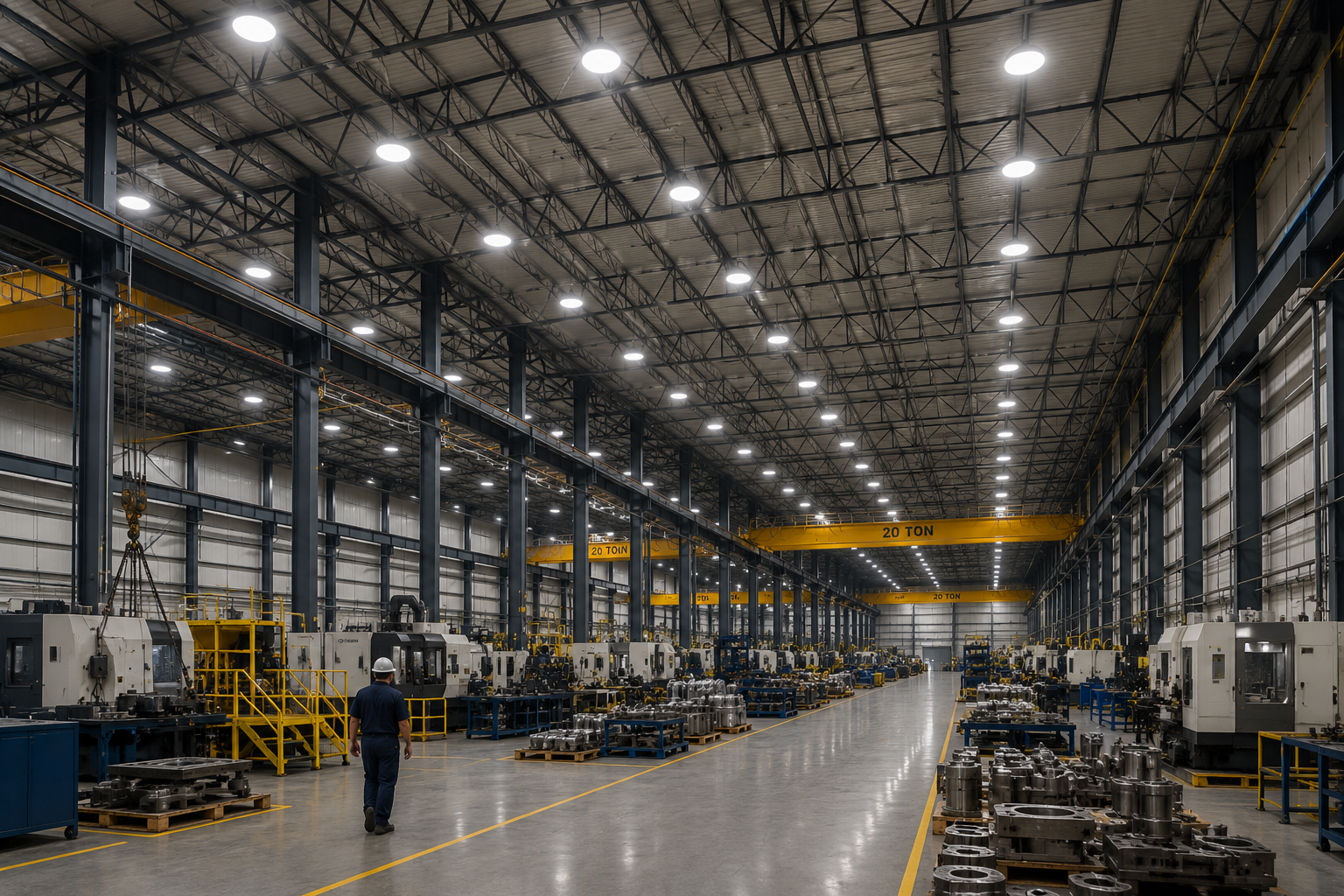

Delivers exceptional high-output illumination across heavy production floors, assembly halls and large industrial facilities where high mounting heights and demanding visual conditions require powerful lighting.

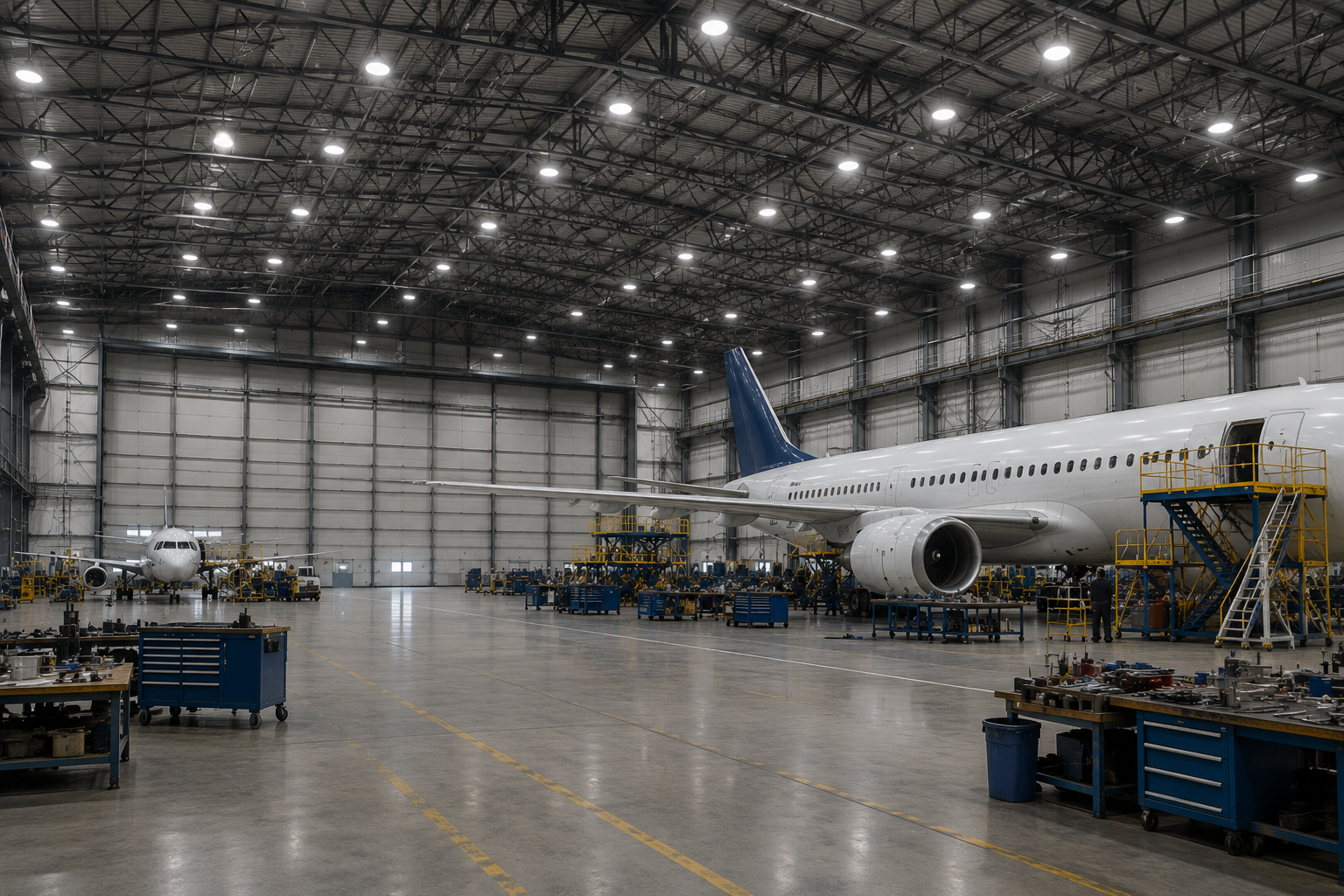

Provides broad, high-output illumination for aircraft hangars, heavy-equipment maintenance bays and other large-volume spaces requiring strong visibility from very high mounting heights.
Powered by durable SOSEN drivers and Lumileds LEDs, delivering maximum efficiency, reliability and long-term performance.
One CCT settings and adjustable wattage provide flexible on-site configuration to meet specific project requirements.
Thermally optimized to maintain target operating temperatures, supporting consistent performance and a 100,000-hour design life.
Die-cast aluminum housing, coating, gaskets and PC lense engineered for demanding outdoor environments.
Typical electrical and photometric performance at 4000K CCT, CRI 70 and Ta = 25°C (77°F). Values may vary depending on optics and operating conditions.
LED current applies to the selected CCT channel. Only one CCT group is active at a time.
Available light options and distributions
Multiple LED and optical configurations are available to meet different project requirements.
Available Light Distribution Types
Multiple beam angle options provide flexible light distribution for different mounting heights and industrial applications.
For very high mounting heights and applications requiring narrow, concentrated illumination.
For higher mounting heights, aisles and applications requiring concentrated illumination.
For warehouses, manufacturing areas and general high-bay applications requiring balanced coverage.
For lower mounting heights and large open industrial areas requiring broad, uniform illumination.
Illustrations are for reference only. For certified photometric performance and detailed distribution characteristics, refer to the corresponding IES files.
Power, Controls & Operating Conditions
VECTOR platform is available in Low Voltage (LV) and High Voltage (HV) configurations to support different electrical infrastructures.

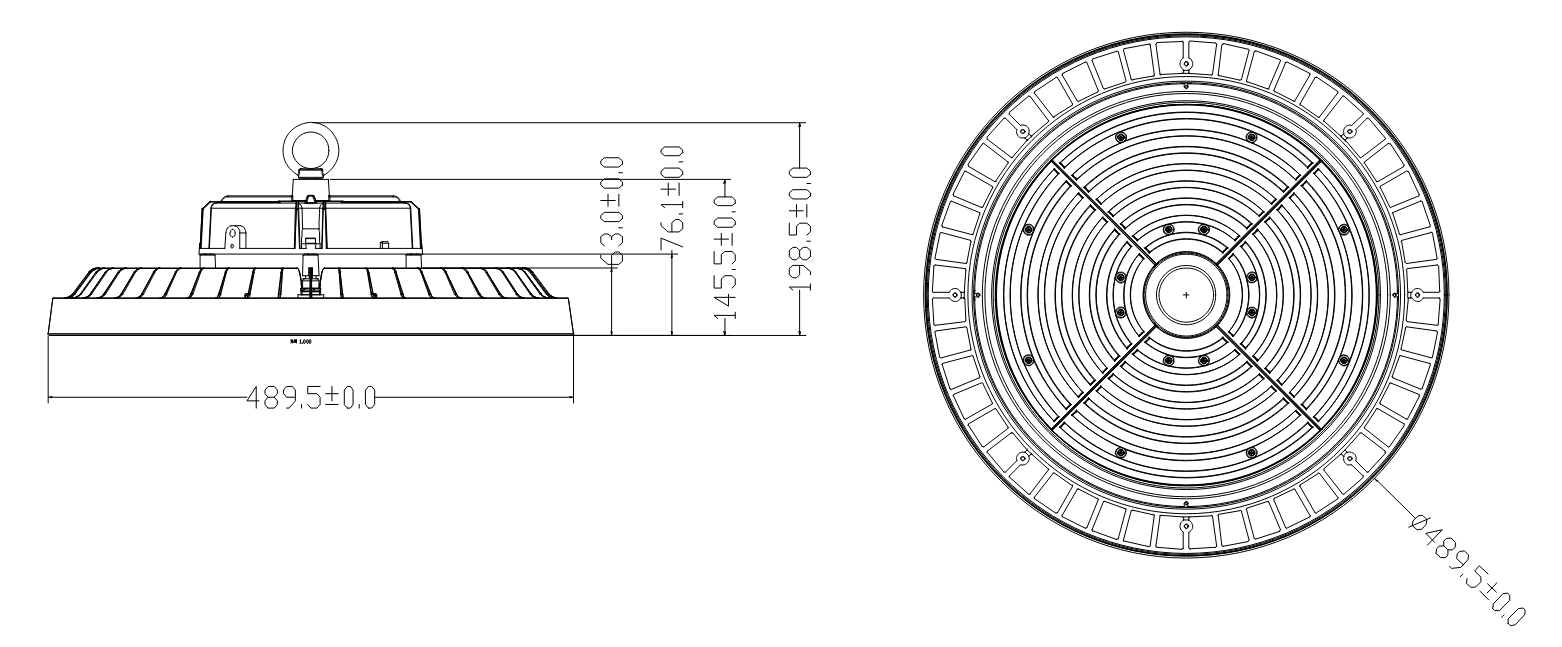

Mechanical specifications including dimensions, weight, mounting options, housing construction and environmental ratings for accurate project planning and installation.
Specifications shown are typical values. Dimensions and weight may vary depending on configuration and selected options.
Configure AXIAL S with optional control accessories, mounting interfaces and protection features to meet project-specific requirements.
Provides additional optical control for applications requiring a more concentrated distribution and reduced high-angle light.
Lightweight polycarbonate reflector designed to improve visual comfort and provide additional control of high-angle light.

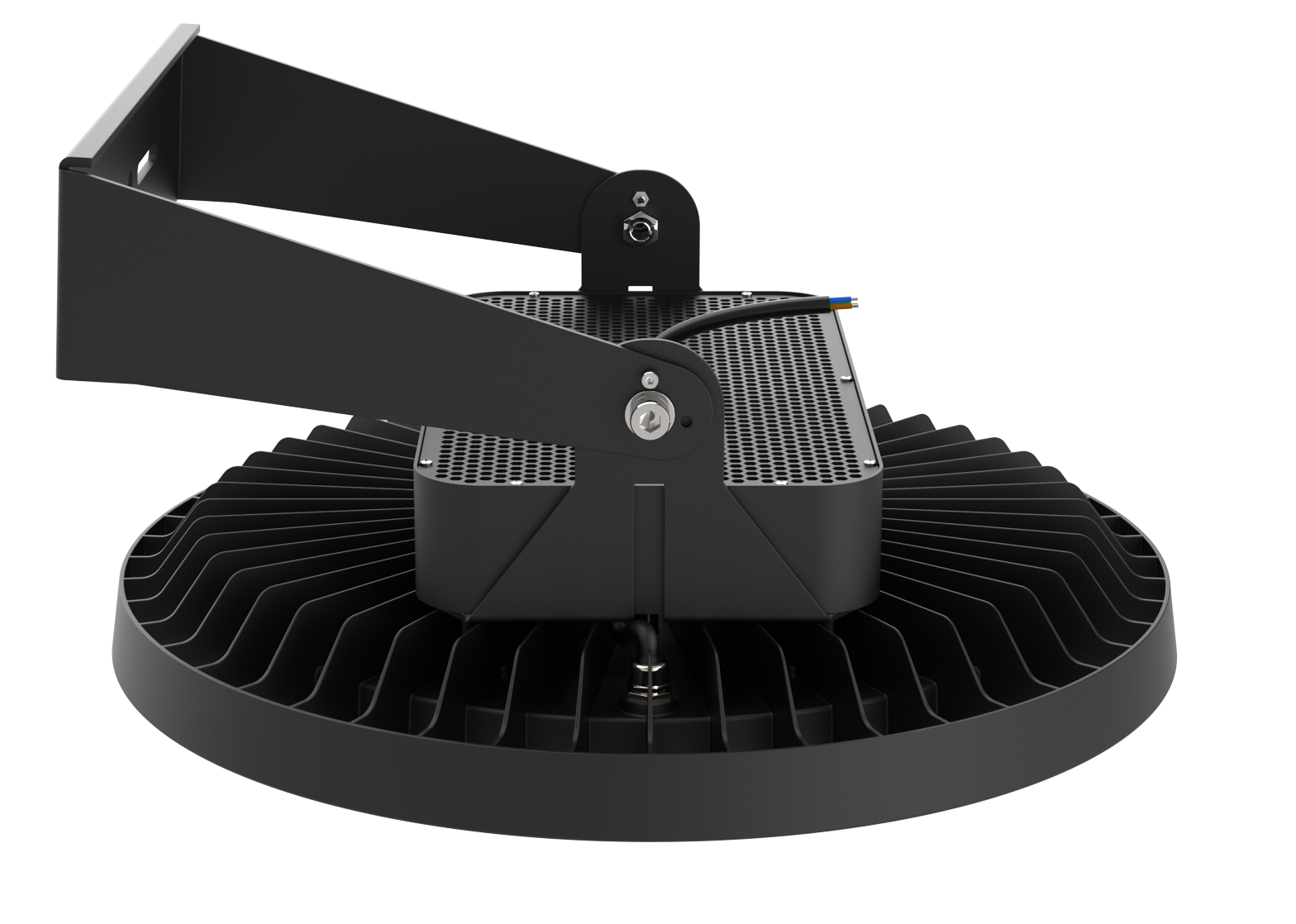

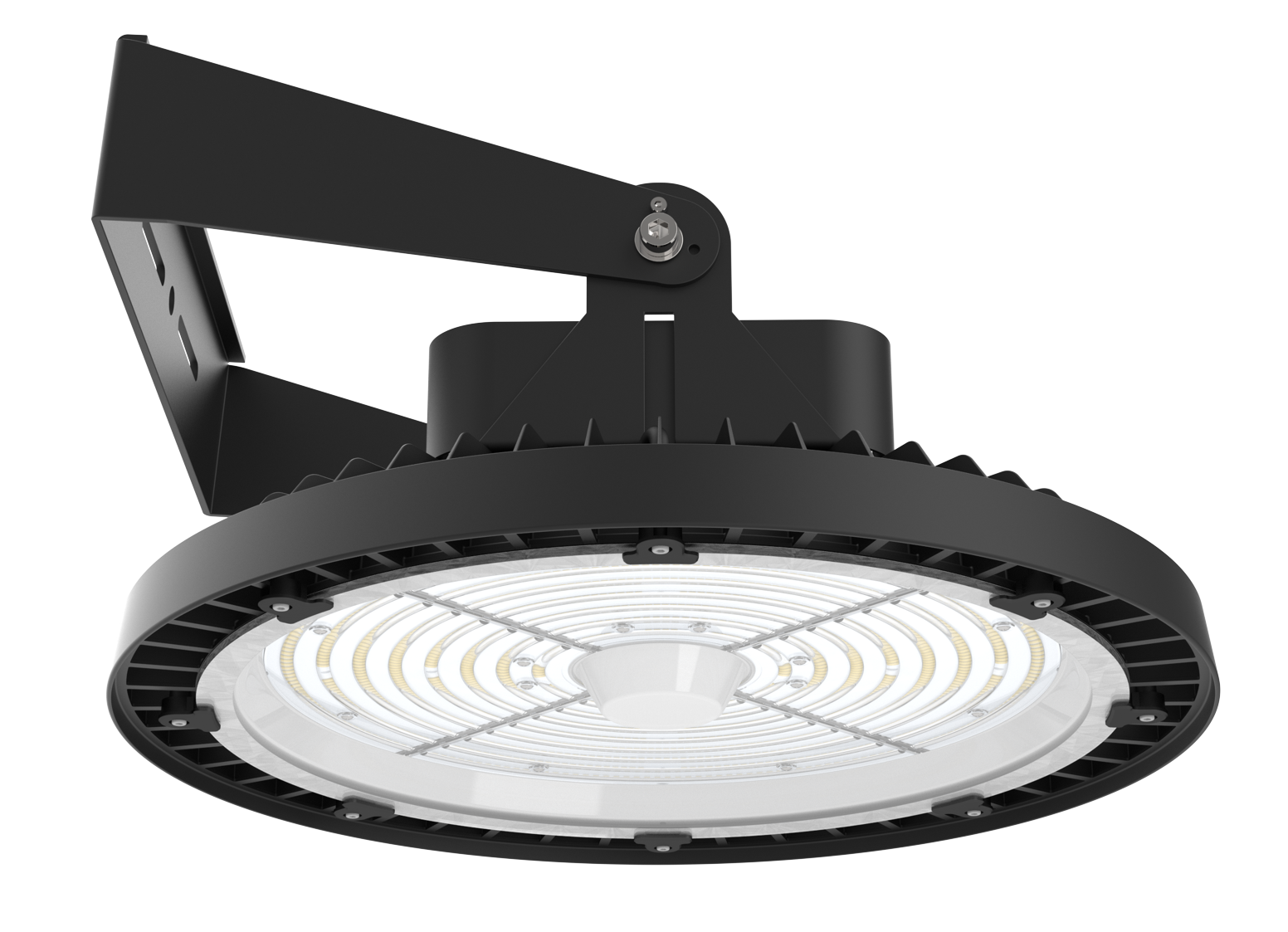

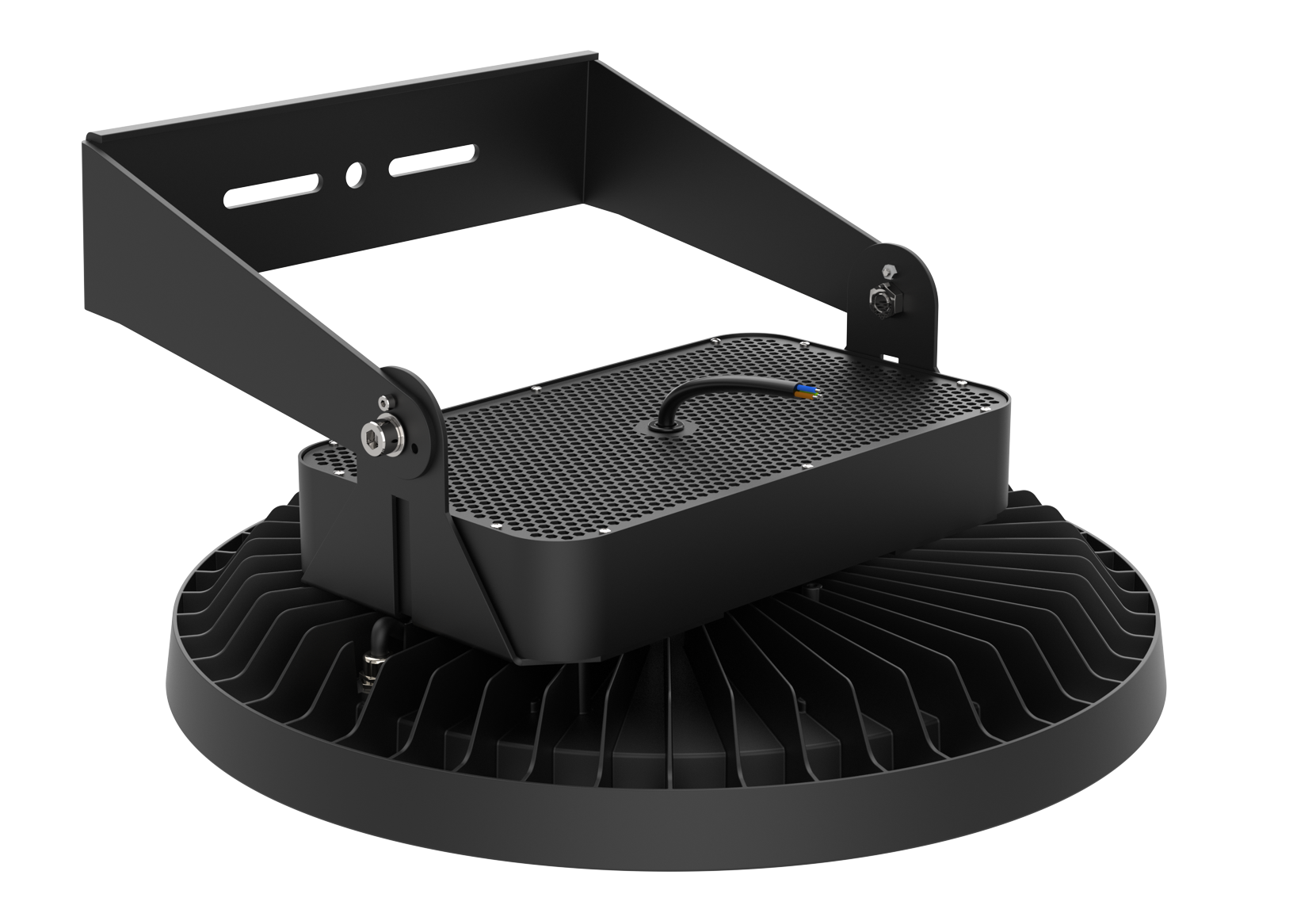

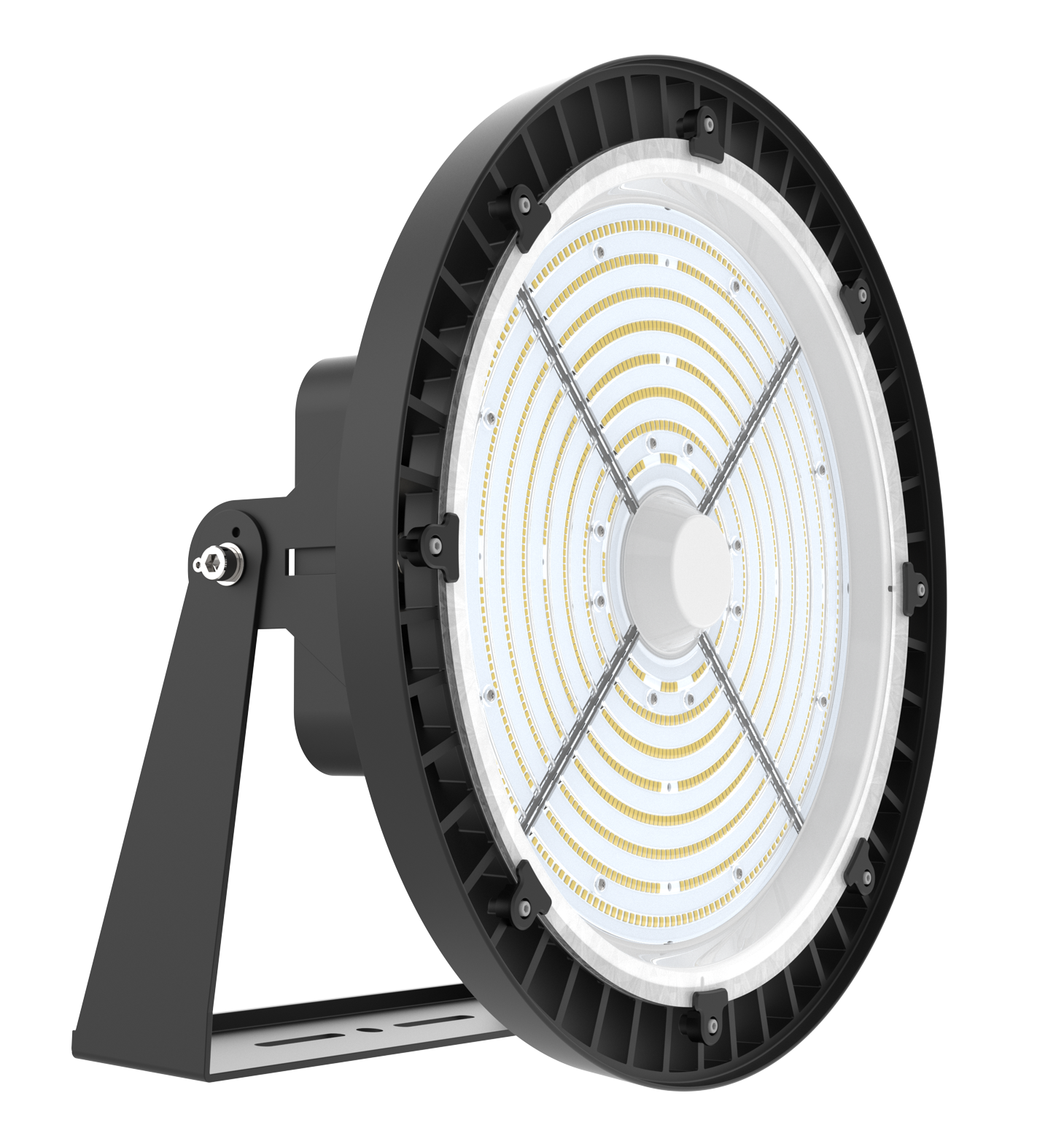

Adjustable mounting bracket for surface, ceiling or structural mounting where suspension by hook is not preferred.
Optional protective glass cover provides additional protection for the LED and optical assembly in demanding industrial environments.
Download product documentation including the datasheet, IES photometric files, installation guide and warranty information.
Need additional documentation or product support? Contact our engineering team.
Access available test reports, certification documents and warranty terms supporting product specification, compliance review and project approval.
Some documents may not yet be available as we continue expanding our technical documentation.
