AREA & PARKING LUMINAIRE
Engineered for Large Outdoor Areas
Designed for commercial parking facilities, urban outdoor areas and collector roads where uniform illumination, optical precision and long-term reliability are essential.
Available Configurations:
XL
View product details, optical assembly, housing design, mounting interface and available configurations.
ARRAY L is engineered for commercial parking facilities, large outdoor areas, urban streets and collector roads, delivering uniform illumination, controlled light distribution and dependable long-term performance.

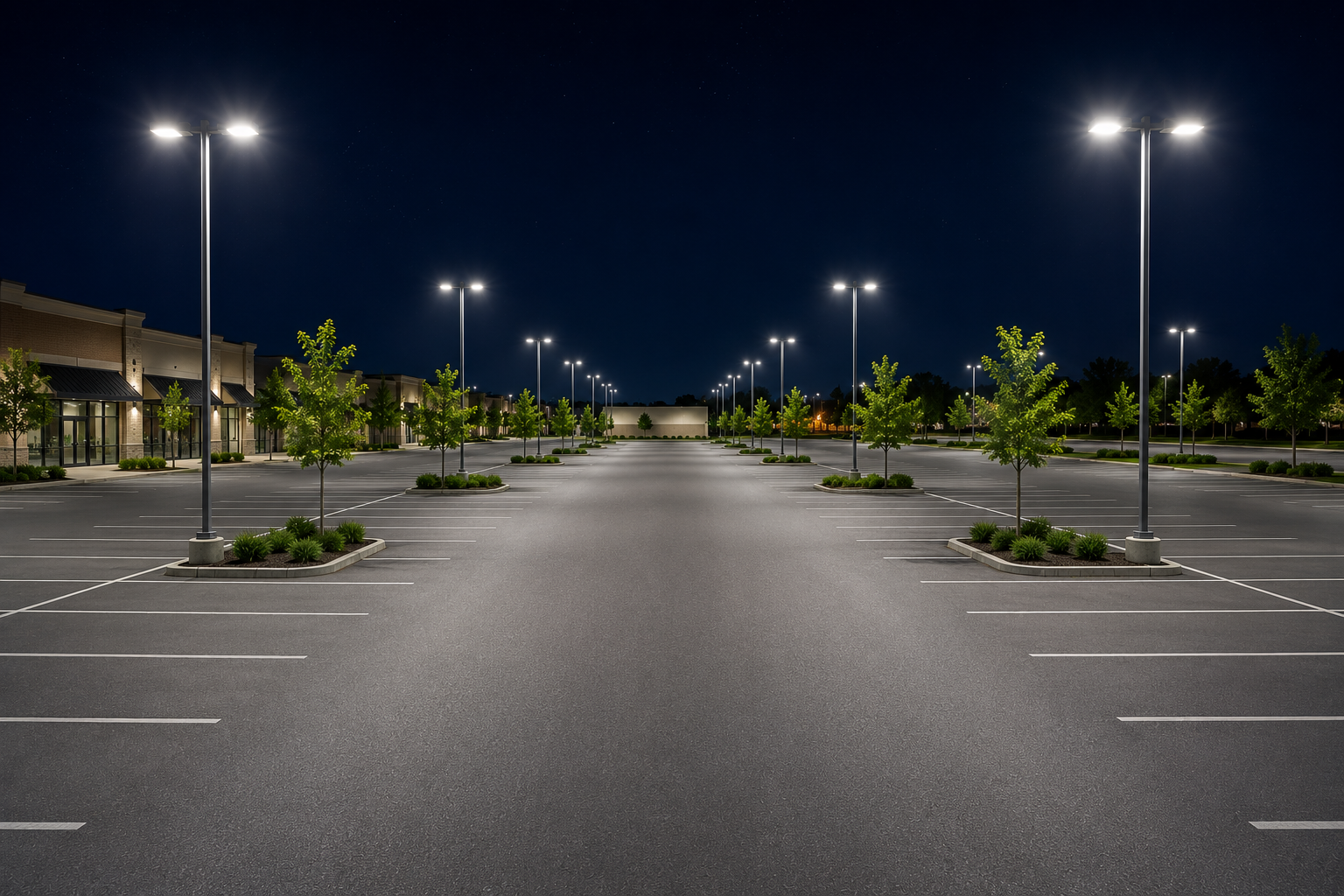

ARRAY L delivers broad, uniform illumination for parking facilities and outdoor areas while minimizing dark zones and spill light.

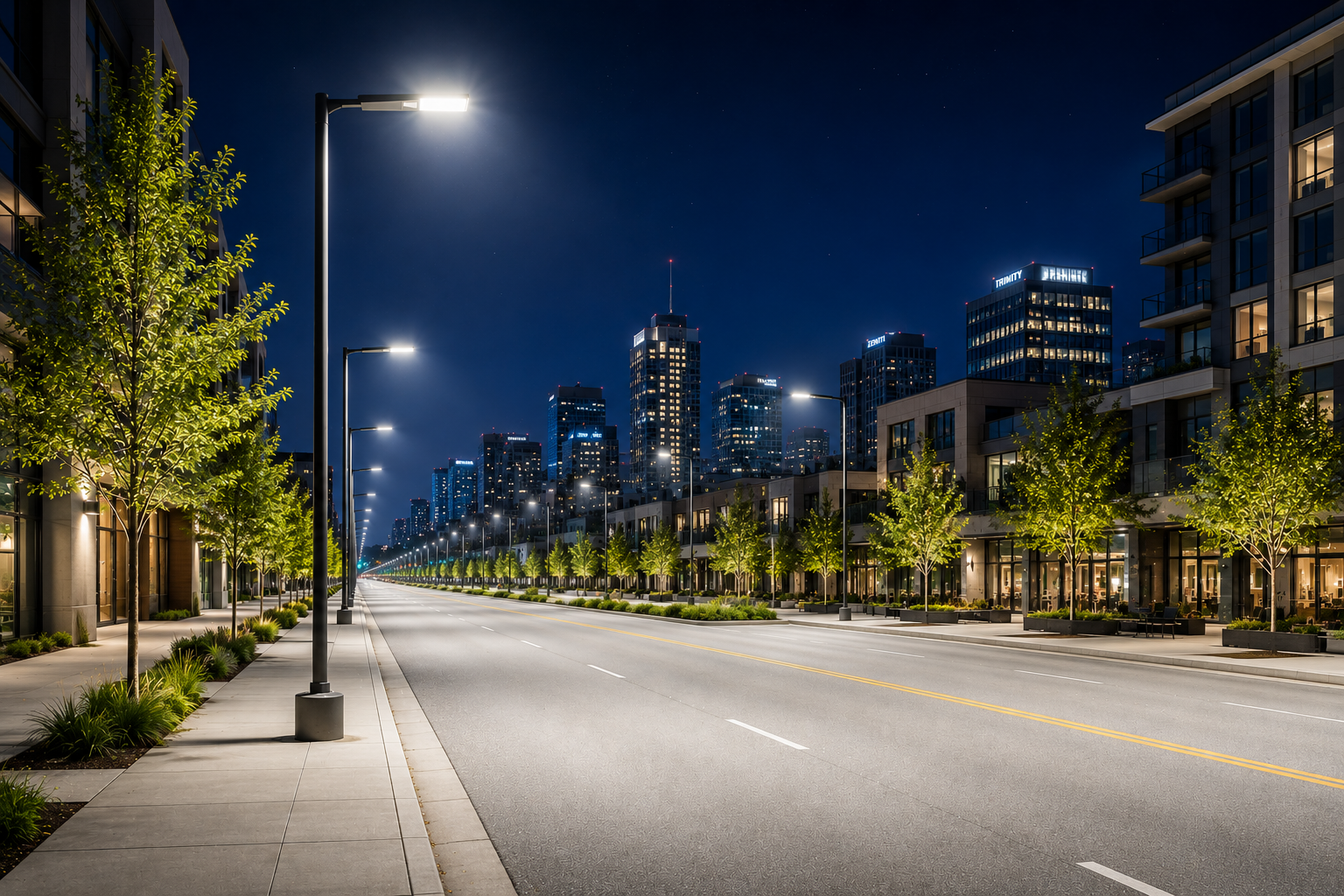

ARRAY L delivers precise optical control, balanced forward distribution and consistent roadway uniformity for urban streets, collector roads and commercial traffic corridors.

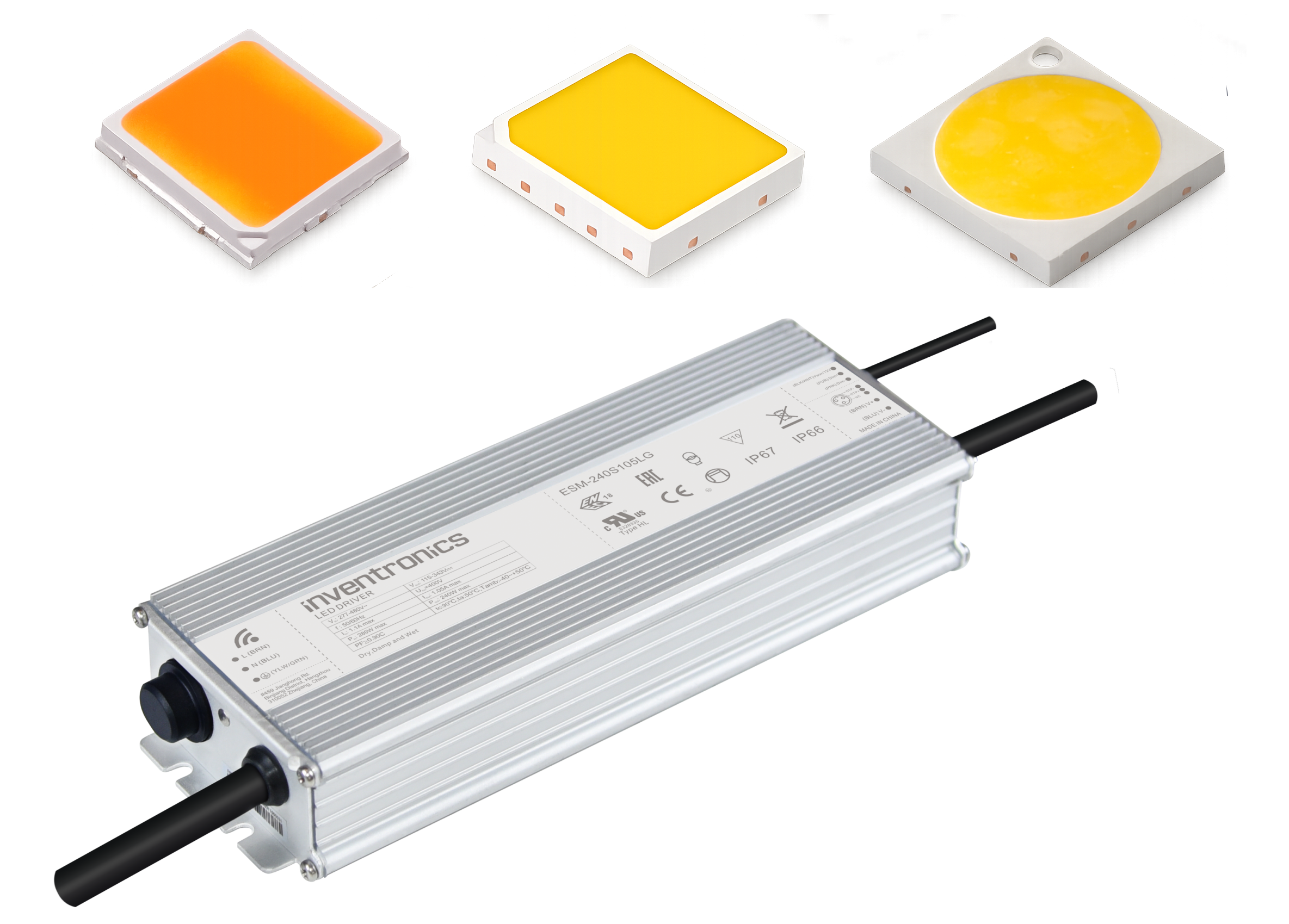

Powered by durable MOSO drivers and LEDs, delivering maximum efficiency, reliability and long-term performance.

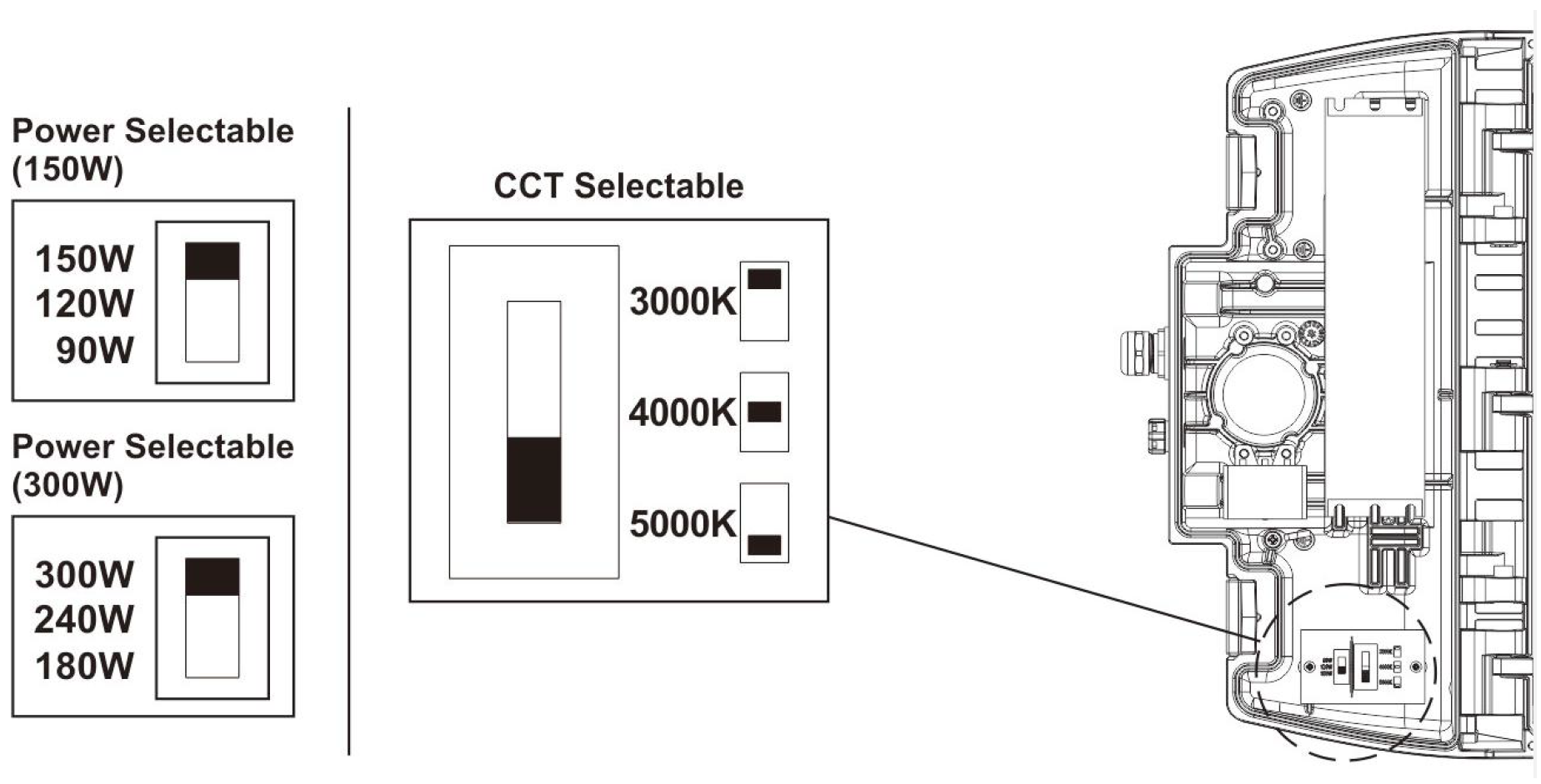

Three selectable CCT settings and adjustable wattage provide flexible on-site configuration to meet specific project requirements.
Thermally optimized to maintain target operating temperatures, supporting consistent performance and a 100,000-hour design life.
Die-cast aluminum housing, coating, gaskets and PC lense engineered for demanding outdoor environments.
Typical electrical and photometric performance at 4000K CCT, CRI 70 and Ta = 25°C (77°F). Values may vary depending on optics and operating conditions.
LED current applies to the selected CCT channel. Only one CCT group is active at a time.
Available light options and distributions
Multiple LED and optical configurations are available to meet different project requirements.
Available Light Distribution Types
Multiple LED and optical configurations are available to meet different project requirements.
Local roads, collector streets and parking areas.

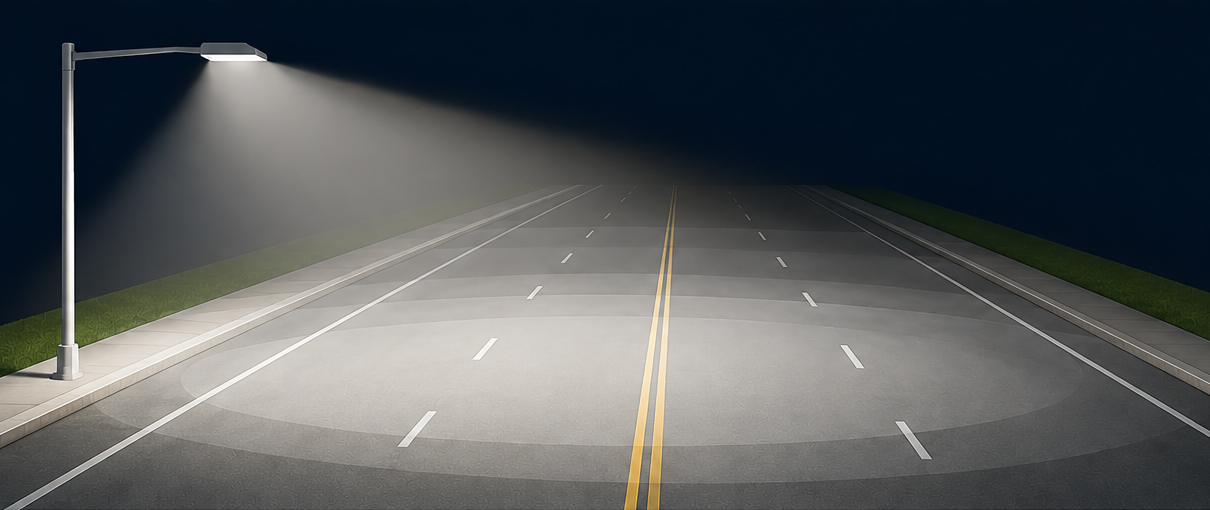

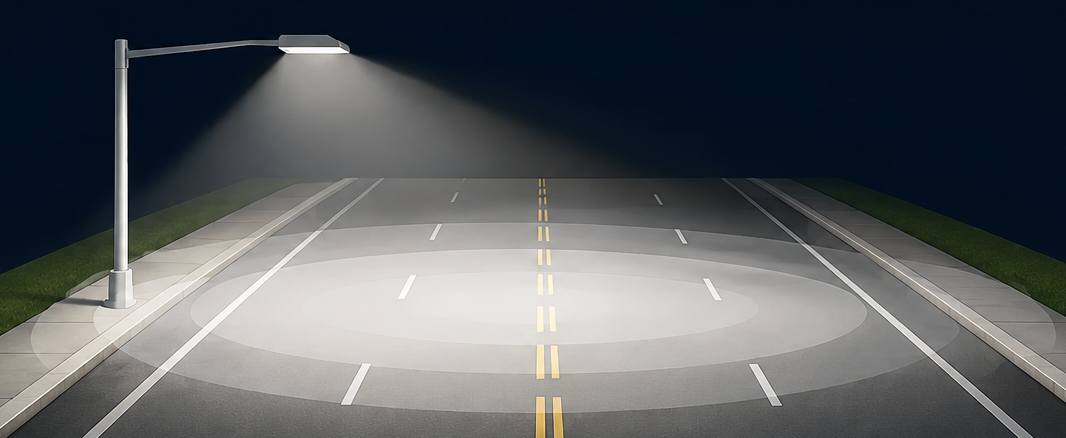

Perimeter lighting, intersections and large roadway applications.

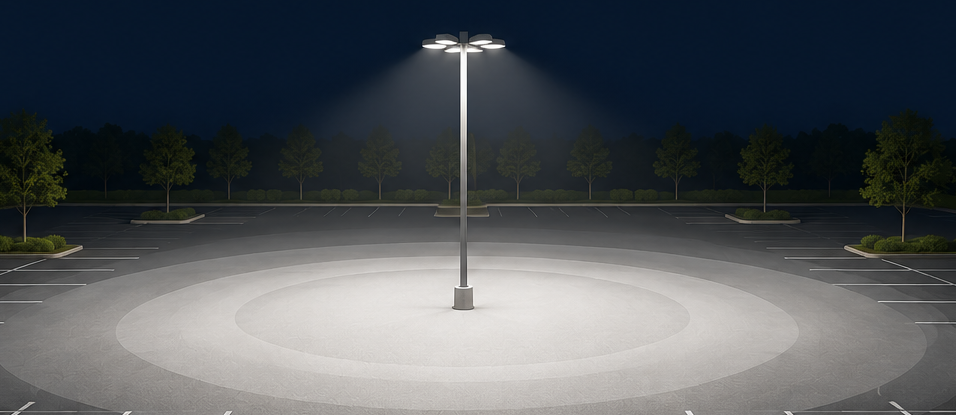

Open areas, plazas and parking facilities.
Illustrations are for reference only. For certified photometric data and detailed light distribution characteristics, please refer to the corresponding IES files.
Power, Controls & Operating Conditions
VECTOR platform is available in Low Voltage (LV) and High Voltage (HV) configurations to support different electrical infrastructures.

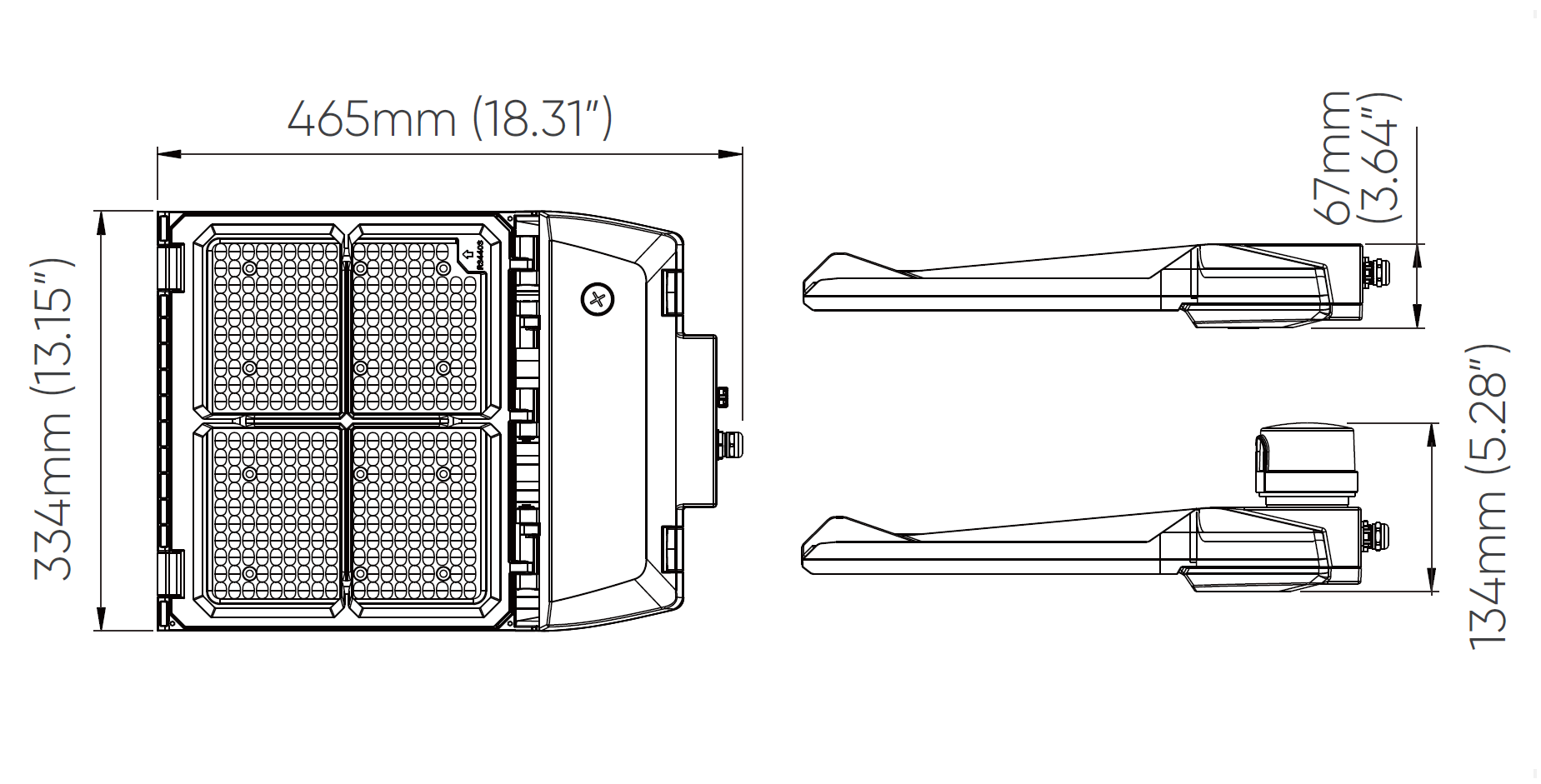

Complete mechanical specifications including dimensions, weight, EPA, mounting compatibility and housing construction for accurate project planning and installation.
Specifications shown are typical values. Dimensions and weight may vary depending on configuration and selected options.
Configure ARRAY L with optional control accessories, mounting interfaces and protection features to meet project-specific requirements.

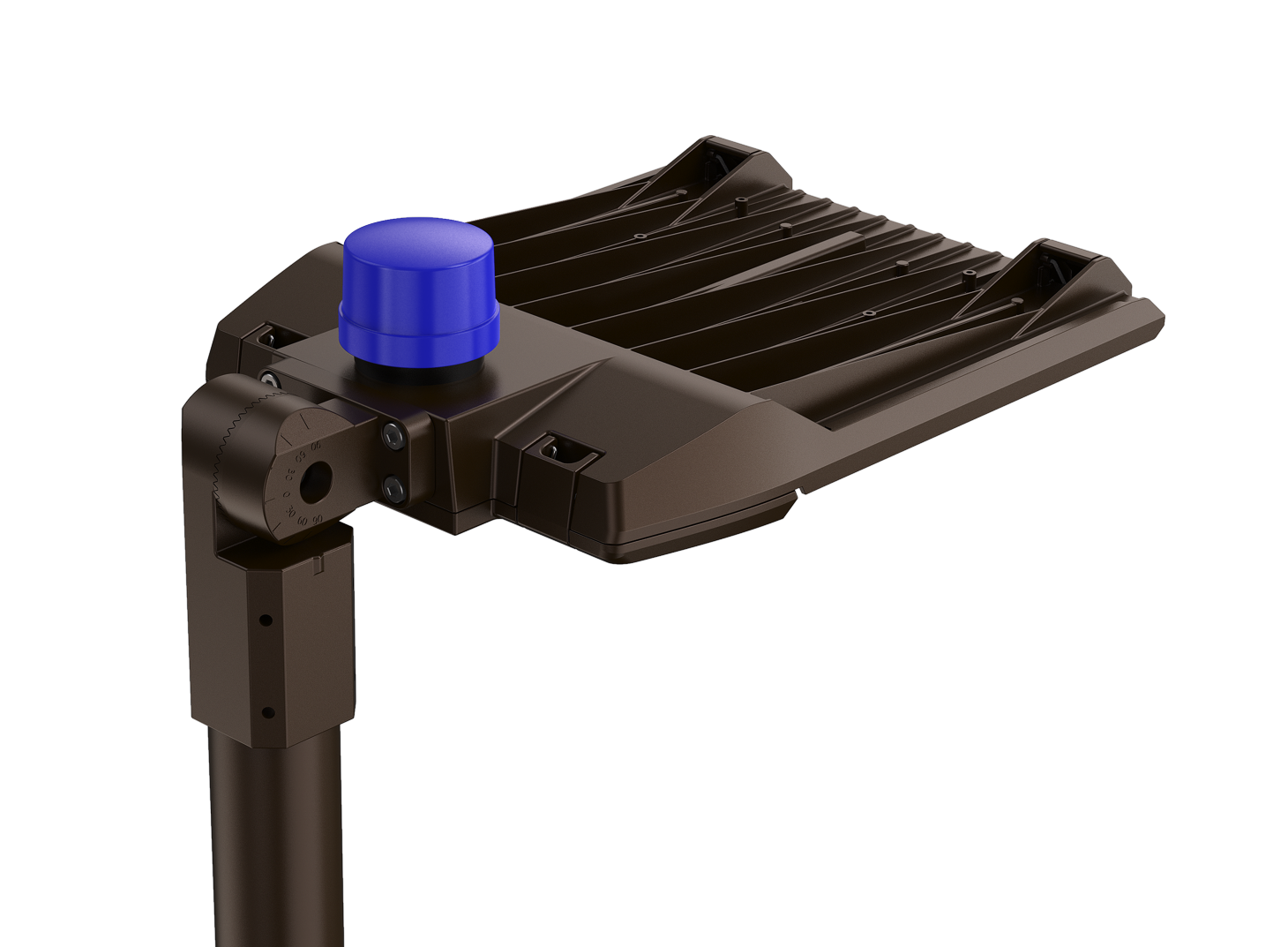

Supports NEMA 7-pin photocells and smart lighting controllers for automatic operation and connected lighting systems.
Available with 10 kA or 20 kA surge protection for enhanced reliability in electrically demanding environments.

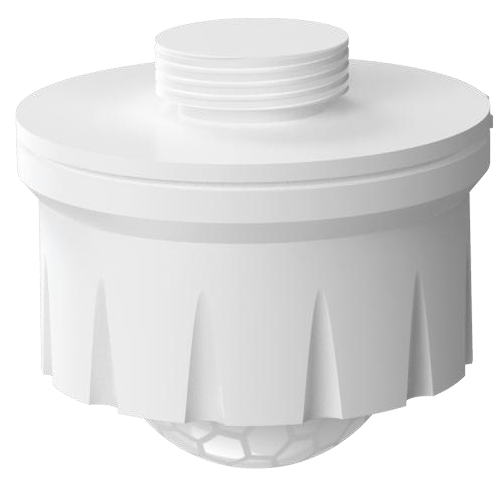

Detects motion using passive infrared technology for pedestrian areas and low-height installations.

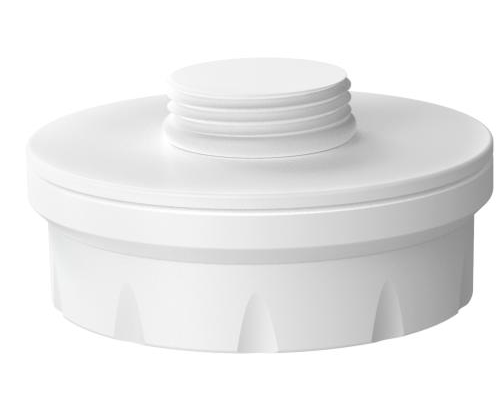

Uses microwave radar to detect motion over larger areas, ideal for parking facilities and roadway applications.

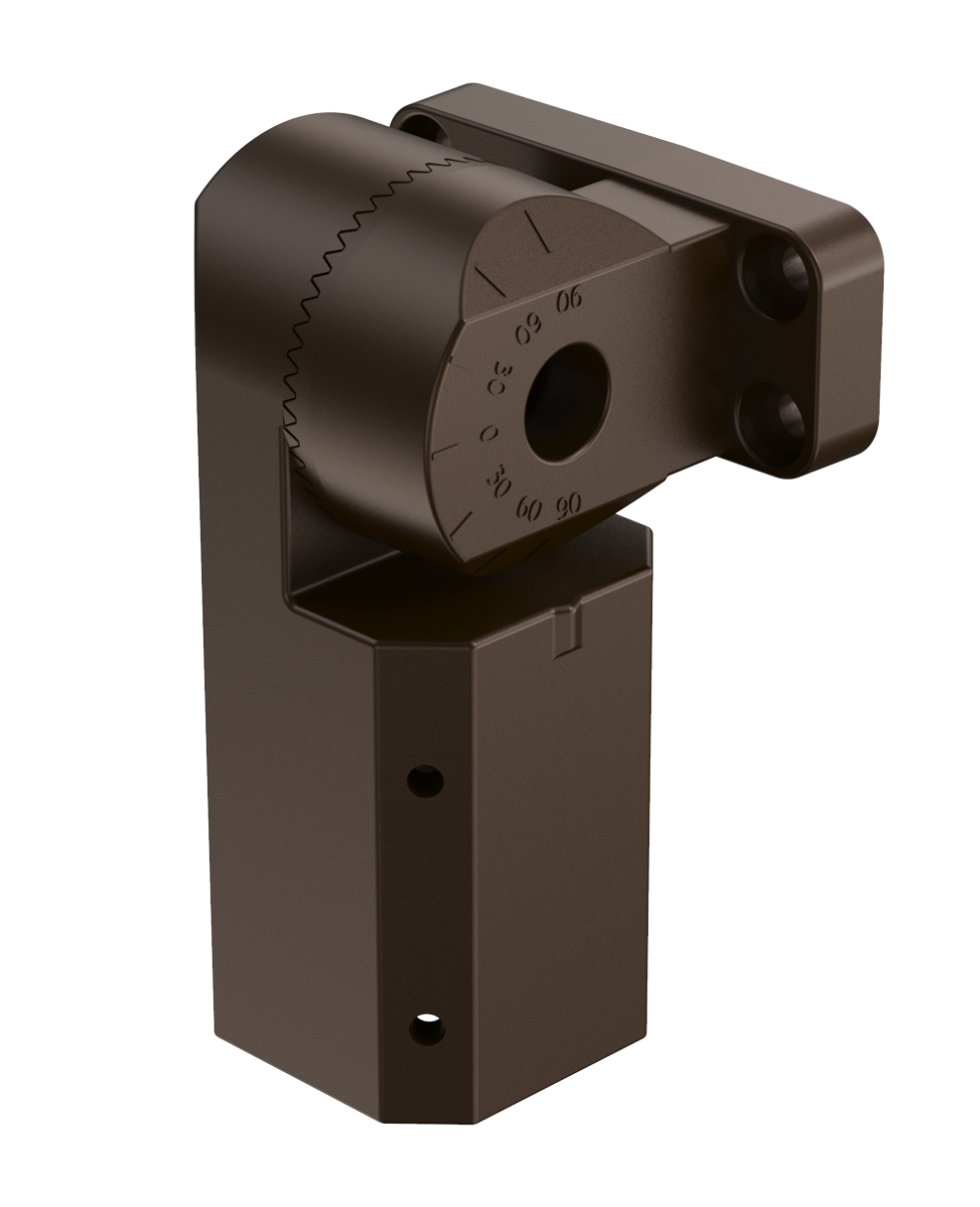

Standard Ø60 mm (2.6 in) side-entry mounting arm provides secure installation and compatibility with common roadway poles.

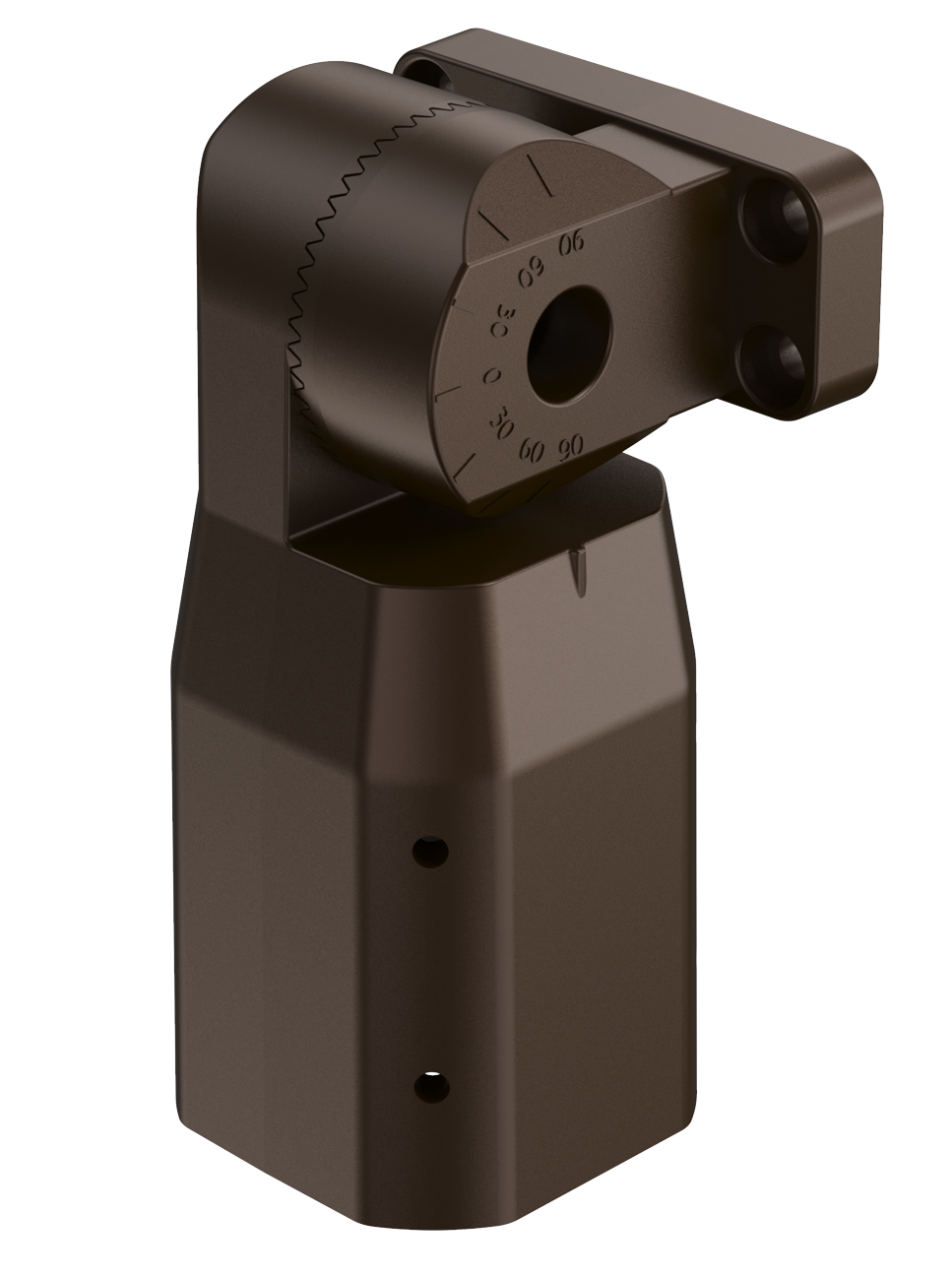

Standard Ø76 mm (3 in.) mounting arm for secure installation on roadway and area lighting poles, ensuring reliable fit.

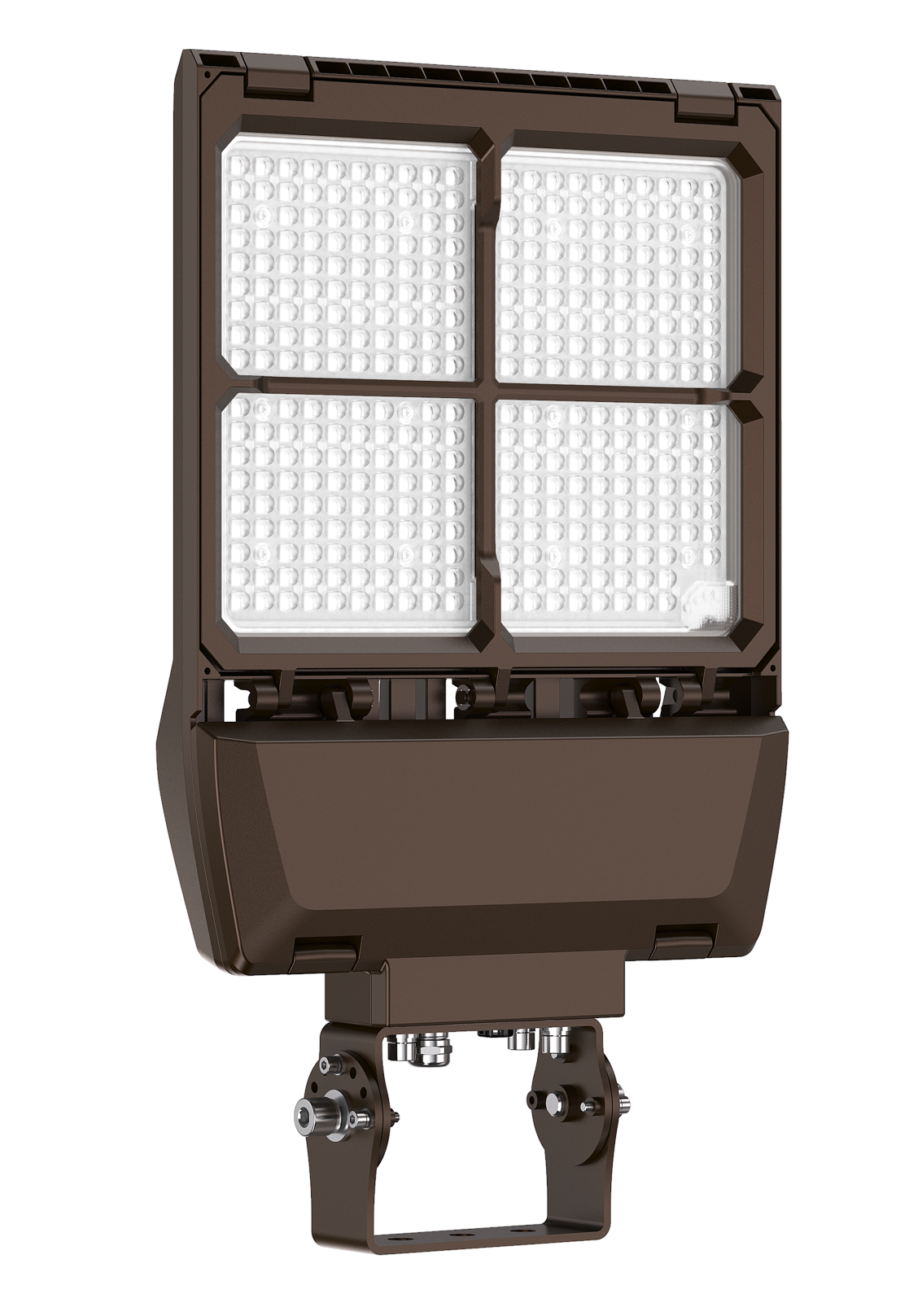

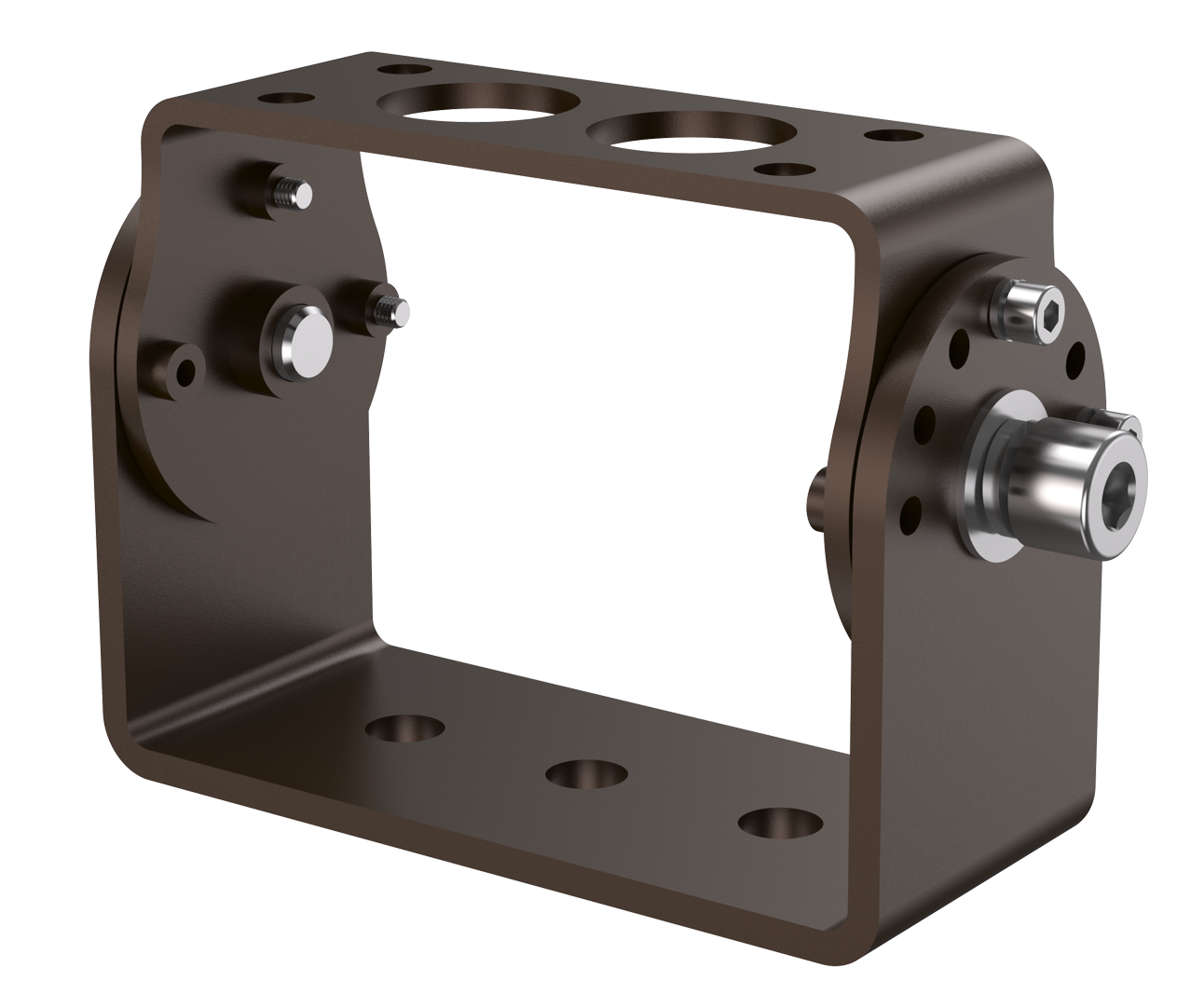

Heavy-duty adjustable bracket for precise aiming in wall, ceiling and structure-mounted applications.

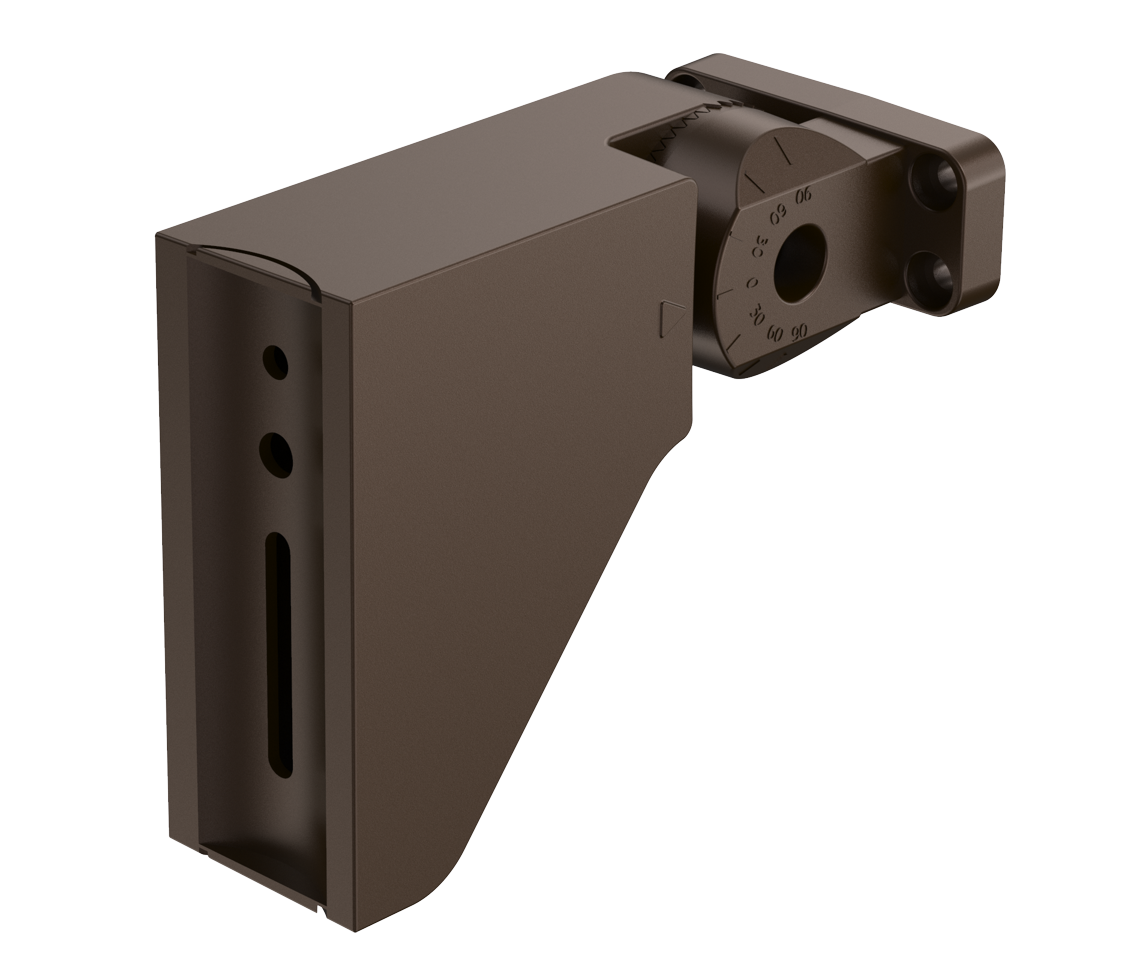

Compatible with square and round poles, providing secure installation and adjustable aiming for area and roadway lighting applications.
Download product documentation including the datasheet, IES photometric files, installation guide and warranty information.
Need additional documentation or product support? Contact our engineering team.
Access available test reports, certification documents and warranty terms supporting product specification, compliance review and project approval.
Some documents may not yet be available as we continue expanding our technical documentation.
